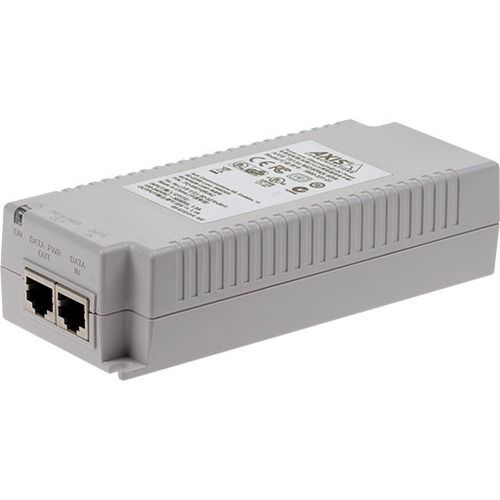

AXIS T8134 60 W Midspan

Marketing Information

Single port High PoE midspan, 60 W. Compliant with IEEE 802.3at and 802.3af. The midspan can be installed on a wall, shelf or DIN rail with an accessory DIN clip.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 5900-332
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: T8134
Product Name: T8134 60 W Midspan
Product Type: PoE Injector
Power Description
Input Voltage:

• 110 V AC
• 230 V AC

Maximum Output Voltage: 55 V DC
Minimum Frequency: 50 Hz...r/>Maximum Frequency: 60 Hz
Maximum Output Power: 60 W
Interfaces/Ports
Input Ports: 10/100/1000Base-T
Output Ports: 10/100/1000Base-T
Physical Characteristics
Form Factor: Desktop
Mount Type: Wall/Shelf/DIN Rail-mountable
Height: 38 mm
Width: 62 mm
Depth: 151 mm
Weight (Approximate): 320 g
Miscellaneous
Compatibility: AXIS Q60-E PTZ Dome Network Camera
Certifications & Standards:

• IEEE 802.3at
• IEEE 802.3af EMC
• NEMA Type 4X
• IP66
