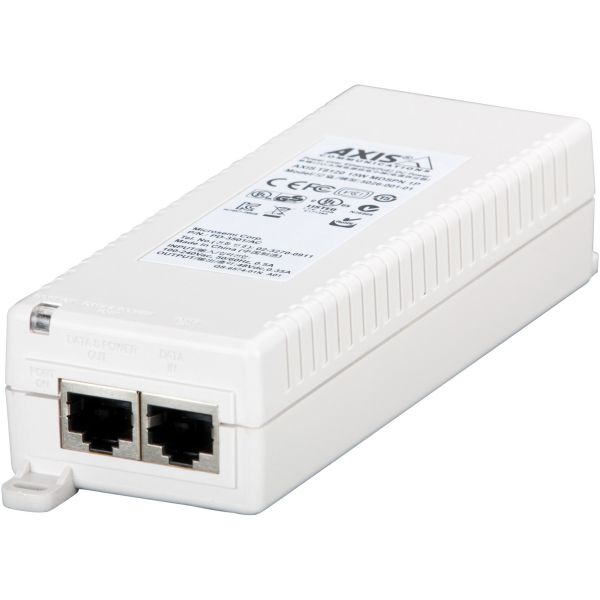

AXIS T8120 Midspan 15 W 1-port

Marketing Information

Easier and faster installations
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling.

No need for power outlets
With the use of Axis PoE products, Axis network cameras and video encoders can receive both data and power over a single Ethernet cable. Network video products can thus be installed in areas where traditional power cabling and outlets are unavailable or difficult to install.

Axis PoE midspans and PoE splitters
Axis PoE midspans provide power (max. 15.4 W per port) over Ethernet cables to network video products with built-in Power over Ethernet support....>

For network video products without built-in PoE support, a PoE splitter must be used to separate power and data coming over the network cable.

Axis PoE midspans and PoE splitters are IEEE 802.3af compliant, which ensures compatibility with all Axis products that have built-in support for Power over Ethernet.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 5026-202
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: T8120
Product Name: T8120 Midspan 15 W 1-port
Product Type: PoE Injector
Power Description
Input Voltage:

• 110 V AC
• 220 V AC

Maximum Output Voltage: 48 V DC
Maximum Input Current: 500 mA
Minimum Frequency: 47 Hz
Maximum Frequency: 63 Hz
Maximum Output Power: 15 W
Interfaces/Ports
Output Ports: 1 x 10/100/1000Base-T
Physical Characteristics
Height: 33 mm
Width: 53 mm
Depth: 140 mm
Weight (Approximate): 450 g
Miscellaneous
For Country/Region: Europe
Compatibility:

Axis Network Cameras:

• M1011
• M1013
• M1014
• M1011-W
• M1031-W

Certifications & Standards:

• IEEE 802.3 compliance
• IEEE 802.3af compliance
• FCC Part 15 Class B
• EN55022 (CISPR 22) Class B
• cUL/UL
• TUV
• CE

Warranty
Limited Warranty: 2 Year
