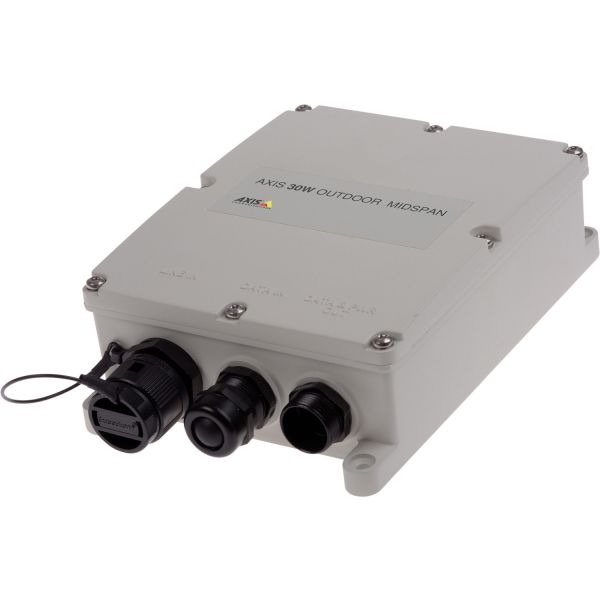

AXIS 30 W Outdoor Midspan

Marketing Information
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at compliant Axis network devices. The midspan ensures safe and reliable operation in outdoor environments. Furthermore, it offers surge protection for both the AC and the PoE ports ensuring protection to the equipment from outdoor surges up to 6kV.

• Outdoor-ready, IP66/67- and NEMA 4X-rated
• IEEE 802.3af and 802.3at
• 100 to 240 V AC
• Railway compliant EN 50121-4 and IEC 62236-4...>

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 01944001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Name: 30 W Outdoor Midspan
Product Type: PoE Injector
Technical Information
Protection Type: Surge Protection
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Maximum Output Voltage: 54 V DC
Minimum Frequency: 50 Hz
Maximum Frequency: 60 Hz
Maximum Output Power: 30 W
Interfaces/Ports
Input Ports: 1 x 10/100/1000Base-T
Output Ports: 1 x PoE
Physical Characteristics
Form Factor: Wall/Pole Mountable
Height: 60 mm
Width: 170 mm
Depth: 140 mm
Weight (Approximate): 1.40 kg
Miscellaneous
Compatibility: AXIS Door Controllers:

• A1001
• A1601

AXIS Fixed Cameras:

• M1065-L
• M1134
• M1135
• M1135-E
• M1137
• M1137-E
• M1145-L
• M2025-LE
• M2026-LE Mk II
• P1214
• P1214-E
• P1224-E
• P1244
• P1245
• P1254
• P1264
• P1265
• P1275
• P1375
• P1375-E
• P1377
• P1377-LE
• P1378
• P1378-LE
• P1435-LE
• P1445-LE-3
• P1447-LE
• P1448-LE
• P1455-LE
• Q1615 Mk III
• Q1615-LE Mk III
• Q1645
• Q1645-LE
• Q1647
• Q1647-LE

AXIS Fixed Dome Cameras:

• M3015
• M3016
• M3037-PVE
• M3057-PLVE
• M3057-PLVE Mk II
• M3058-PLVE
• M3064-V
• M3065-V
• M3066-V
• M3067-P
• M3068-P
• M3075-V
• M3077-PLVE
• M3115-LVE
• M3116-LVE
• M3205-LVE
• M3206-LVE
• M4206-LV
• M4206-V
• P3227-LV
• P3227-LVE
• P3228-LV
• P3228-LVE
• P3245-LV
• P3245-LVE
• P3245-V
• P3245-VE
• P3247-LV
• P3247-LVE
• P3248-LV
• P3248-LVE
• P3255-LVE
• P3367-V
• P3367-VE
• P3374-LV
• P3374-V
• P3375-LV
• P3375-LVE
• P3375-V
• P3375-VE
• P3715-PLVE
• P3717-PLE
• P3719-PLE
• P3807-PVE
• P9106-V
• Q3515-LV
• Q3515-LVE
• Q3517-LV
• Q3517-LVE
• Q3517-SLVE
• Q3518-LVE
• Q3527-LVE
• Q3615-VE
• Q3617-VE
• Q3708-PVE
• Q3709-PVE
• Q9216-SLV

AXIS Housings:

• T92E20 Outdoor Housing
• T92G20 Outdoor Housing
• T93F20 Outdoor Housing

AXIS I/O Relay Modules:

• A9161
• A9188-VE

AXIS Illuminators:

• T90C20 Fixed Dome IR-LED
• T90D20 PoE IR-LED
• T90D25 PoE W-LED

AXIS Intercoms:

• I8016-LVE

AXIS Modular Cameras:

• F34 Main Unit
• F34 Surveillance system
• F41 Main Unit
• F44 Dual Audio Input

AXIS PTZ Cameras:

• M5054
• M5055
• M5065
• M5525-E
• P5414-E
• P5415-E
• P5654-E
• P5655-E
• Q6074
• Q6074-E
• Q6075
• Q6075-E
• Q6128-E
• Q6154-E
• Q6155-E

AXIS People Counters:

• P8815-2

AXIS PoE Extenders:

• Long Range PoE Extender Kit

AXIS Power Over Ethernet:

• PoE Splitter 5 V

AXIS Security Radars:

• D2110-VE Security Radar

AXIS Speakers:

• C1310-E
• C1410

AXIS Thermal Cameras:

• P1280-E
• P1290-E
• Q1941-E
• Q1941-E PT Mount
• Q1942-E
• Q1942-E PT Mount
• Q2901-E
• Q2901-E PT Mount

AXIS Video Encoders:

• M7104
• P7304
• Q7411
• Q7424-R Mk II
