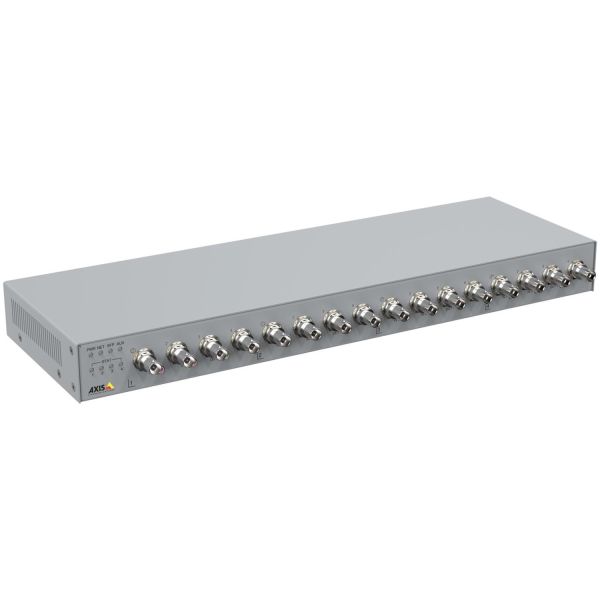

AXIS P7316 Video Encoder

Marketing Information

With AXIS P7316 you can migrate to IP surveillance at your own pace. This full-featured, 16-channel video encoder supports standard and analog cameras up to 4K resolution*. It offers support for PTZ (pan/tilt/zoom) cameras as well as two-way audio and analytics.

Everything you need and more

AXIS P7316 delivers video at 30 fps from NTSC/PAL or HD analog video in 1080p resolution. It supports HD analog up to 4K resolution*. Featuring Zipstream with H.264/H.265, it drastically cuts bandwidth and storage requirements. With remote access, you can view video streams on any browser or computer and change camera settings. Configurable inputs/outputs can be connected to external relays and sensors, for example, t...o activate lights and lock/unlock doors. AXIS P7316 supports two-way audio and intelligent analytics, as well as audio detection with analog and digital AXIS T83 microphones. The RS485 port lets you control analog PTZ cameras and an SFP slot enables optical fiber connection and network redundancy.

Seamless migration to IP surveillance

AXIS P7316 helps you migrate to the world of IP surveillance at your own pace while protecting your investment in analog equipment. Built on an open platform, AXIS P7316 allows you to use open-standard IT hardware or video management software from the supplier of your choice. This compact encoder is rack-mounted, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system. Furthermore, if you use it with the AXIS Camera Station video management software, you only need one license for all 16 channels.

First-class Axis quality

Packed with built-in cybersecurity features, this reliable encoder helps prevent unauthorized access and safeguards your system. It is more secure than DVRs, which typically lack these types of cybersecurity features. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the device is completely free of malware even after a factory default. Plus, thanks to continuous firmware updates, you can always depend on Axis for first-class quality and support.

This 16-channel encoder can handle a maximum of four 4K or QHD resolution cameras and eight 1080p/720p/PAL/NTSC cameras simultaneously. Four channels will be disabled when optimizing for 4K or QHD.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02037-003
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: P73
Product Model: P7316
Product Name: P7316 Video Encoder
Product Type: Video Surveillance Station
Technical Information
Total Number of Channels: 16
Connectivity Technology: Wired
Recording Formats: 4K
HD Recording: Yes
System Components: Video Encoder
Video
Video Formats:

• H.265
• H.264

Video Signal Format:

• NTSC
• PAL

Maximum Resolution: 3840 x 2160
Maximum Frame Rate: 30 fps
