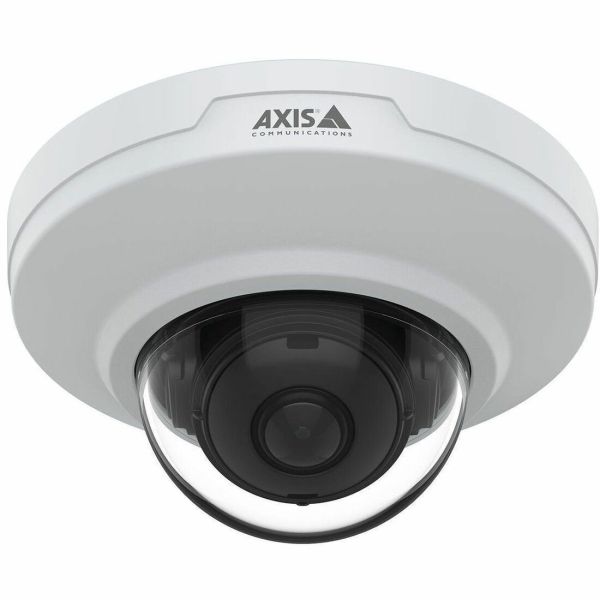

AXIS Fixed 4 MP Mini Dome with Deep Learning Network Camera
£330.73
Out Of Stock - Contact us for availability
AXIS Fixed 4 MP Mini Dome with Deep Learning Network Camera
Category: Surveillance|Network Cameras
| Image Sensor Size | 1/2.7" |
|---|---|
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 4 Megapixel |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 45°C |
| Operating Humidity | 85% |
| Power Source Type | PoE |
| Impact Protection Rating | IK08 |
| Ingress Protection Rating | IP42 |
| Product Type | Network Camera |
| Protocols | ONVIF/IPv4/MQTT/IPv6 USGv6/ICMPv4/ICMPv6/HTTP/HTTPS/TLS/DiffServ (QoS)/FTP/SFTP/CIFS/SMB/SMTP/mDNS (Bonjour)/UPnP/SNMPv1/v2c/v3 (MIB2)/DNS/DNSv6/DDNS/NTP/NTS/RTSP/RTP/SRTP/RTSPS/TCP/UDP/IGMPv1/v2/v3/RTCP/ICMP/DHCPv4/v6/ARP/SSH/LLDP/SIP/CDP/MQTT v3.1.1/Zer |
| Colour Supported | Colour |
| Connectivity Technology | Wired |
| Features | Wide Dynamic Range/Day/Night/Video Management System/Motion Detection/Multi-view Stream/Audio Compression/HTTPS Encryption/Privacy Masking/Mirror/White Balance |
| Form Factor | Mini Dome |
| Lens Type | Fixed |
| Brand Name | AXIS |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Focal Length | 2.40 mm |
| Ethernet Technology | Fast Ethernet |
| Network (RJ-45) | Yes |
| Indoor/Outdoor | Indoor |
| Product Color | White |
Description
Marketing Information
Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02832001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: M3086-V
Product Name: Fixed 4 MP Mini Dome with Deep Learning Network Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Camera Iris: Fixed
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.7"
Colour Supported: Colour
Field of View: Horizontal field of view: 130° Vertical field of view: 93°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:
Maximum Video Resolution: 2688 x 1512
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 2.40 mm
Lens Included: Yes
Maximum Aperture: f/2.1
Exposure
Shortest Shutter Speed: 1/38500 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 4.20 W
Power Source Type: PoE
Physical Characteristics
Form Factor: Mini Dome
Durability:
Color Family: White
Product Color: White
Height: 56 mm
Diameter: 101 mm
Weight (Approximate): 150 g
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 45°C
Maximum Operating Humidity: 85%
Miscellaneous
Features:
Indoor/Outdoor: Indoor
Impact Protection Rating: IK08
Ingress Protection Rating: IP42
This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there's both dark and light areas in the scene. With Lightfinder, it delivers sharp color images even in low light. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. And AXIS Object Analytics offers detection and classification of different types of objects - all tailored to your specific needs. Furthermore, this compact, easy-toinstall, vandal-resistant camera offers a wide-angle view of 130° and comes factory focused so there's no manual focusing required.
- Great image quality in 4 MP
- Compact, discreet design
- WDR and Lightfinder
- Support for analytics ...with deep learning
- Built-in cybersecurity features
Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02832001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: M3086-V
Product Name: Fixed 4 MP Mini Dome with Deep Learning Network Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Camera Iris: Fixed
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.7"
Colour Supported: Colour
Field of View: Horizontal field of view: 130° Vertical field of view: 93°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:
- H.264M (MPEG-4 Part 10/AVC)
- H.264H (MPEG-4 Part 10/AVC)
- Motion JPEG
- H.264B (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC) Main Profile
- H.264
- H.265
- Zipstream
Maximum Video Resolution: 2688 x 1512
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 2.40 mm
Lens Included: Yes
Maximum Aperture: f/2.1
Exposure
Shortest Shutter Speed: 1/38500 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:
- ONVIF
- IPv4
- MQTT
- IPv6 USGv6
- ICMPv4/ICMPv6
- HTTP
- HTTPS
- TLS
- DiffServ (QoS)
- FTP
- SFTP
- CIFS/SMB
- SMTP
- mDNS (Bonjour)
- UPnP
- SNMPv1/v2c/v3 (MIB2)
- DNS/DNSv6
- DDNS
- NTP
- NTS
- RTSP
- RTP
- SRTP/RTSPS
- TCP
- UDP
- IGMPv1/v2/v3
- RTCP
- ICMP
- DHCPv4/v6
- ARP
- SSH
- LLDP
- SIP
- CDP
- MQTT v3.1.1
- ZeroConf
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 4.20 W
Power Source Type: PoE
Physical Characteristics
Form Factor: Mini Dome
Durability:
- Vandal Resistant
- Water Resistant
- Impact Resistant
- Dust Resistant
Color Family: White
Product Color: White
Height: 56 mm
Diameter: 101 mm
Weight (Approximate): 150 g
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 45°C
Maximum Operating Humidity: 85%
Miscellaneous
Features:
- Wide Dynamic Range
- Day/Night
- Video Management System
- Motion Detection
- Multi-view Stream
- Audio Compression
- HTTPS Encryption
- Privacy Masking
- Mirror
- White Balance
Indoor/Outdoor: Indoor
Impact Protection Rating: IK08
Ingress Protection Rating: IP42
