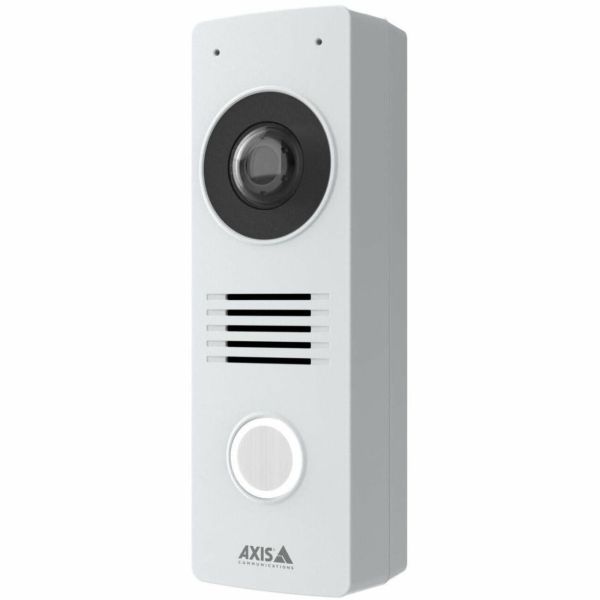

AXIS I8116-E Network Video Intercom

Marketing Information

Small and flexible with deep learning

This compact and powerful network video intercom operates as a communication device and security camera, providing 5MP video, two-way communication, and remote entry control. Open standards such as ONVIF and Session Initiation Protocol (SIP) combined with its small size enables unique opportunities for system design and integration. WDR and efficient noise cancellation ensure performance in demanding situations, such as strong backlight or surrounding noise. It's also possible to wire an OSDP reader to the IO connector for trouble-free access control using Axis Access Control solutions. Furthermore, it comes with AXIS Object Analytics preinstalled, and built-in cybersecurity features help ...prevent unauthorized access.

• Mullion form factor
• High quality 5 MP video with audio
• SIP support
• Support for analytics based on deep learning
• Built-in cybersecurity features

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02408001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: I8116-E
Product Name: I8116-E Network Video Intercom
Product Type: Video Door Phone Sub Station
Technical Information
Communication Mode: Full-duplex
Ingress Protection (IP) Rating: IP65
Impact Protection (IK) Rating: IK08
Camera
Image Sensor Type: CMOS
Camera Resolution: 5 Megapixel
Minimum Illumination: 0.2 lux
Horizontal Viewing Angle: 162°
Vertical Viewing Angle: 118°
Power Description
Power Consumption: 10.80 W
Physical Characteristics
Product Color: White
Product Material:

• Aluminium
• Zinc
• Polycarbonate

Height: 148 mm
Width: 48.5 mm
Depth: 41.4 mm
Weight (Approximate): 400 g
Miscellaneous
Package Contents:

• I8116-E Network Video Intercom
• Installation Guide
• Terminal Block Connector
• Connector Guard
• Cable Gaskets
• Owner Authentication Key

Application/Usage:

• Outdoor
• Access Control

Additional Information:

• Network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
• Network security: IEEE 802.1X (EAP-TLS)b , IEEE 802.1AR, HTTPS/HSTSb , TLS v1.2/v1.3b , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering
• Wall mount or recessed with AXIS TI8204 Recessed Mount
• Recommended height: 0.38-1.22 m (1.2-4.0 ft)
• Power over Ethernet (PoE): IEEE 802.3af/802.3at Type 1 Class 3
• Typical 4 W, max 10.8 W
• Power out: 1x12 V DC, max out: 350 mA at 12 V DC
• Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
• I/O: Terminal block for two configurable inputs / digital outputs
• Serial communication: RS485, half duplex/2-wire
• Languages: English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

Certifications & Standards:

• CSA
• UL/cUL
• UKCA
• CE
• KC
• ANATEL
• EN 55035
• EN 55032 Class A
• EN 61000-6-1
• EN 61000-6-2
• Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
• Canada: ICES-3(A)/NMB-3(A)
• Japan: VCCI Class A
• Korea: KS C 9835, KS C 9832 Class A
• USA: FCC Part 15 Subpart B Class A
• IEC/EN/UL 60950-22
• IEC/EN/UL 62368-1
• NOM-001
• IEC 60068-2-1
• IEC 60068-2-2
• IEC 60068-2-6
• IEC 60068-2-14
• IEC 60068-2-27
• IEC 60068-2-78
• IEC/EN 60529 IP65
• IEC/EN 62262 IK08, NEMA 250 Type 4X
• IEEE 802.3af/802.3at Type 1 Class 3

Country of Origin: Poland
TAA Compliant: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty: 5 Year
