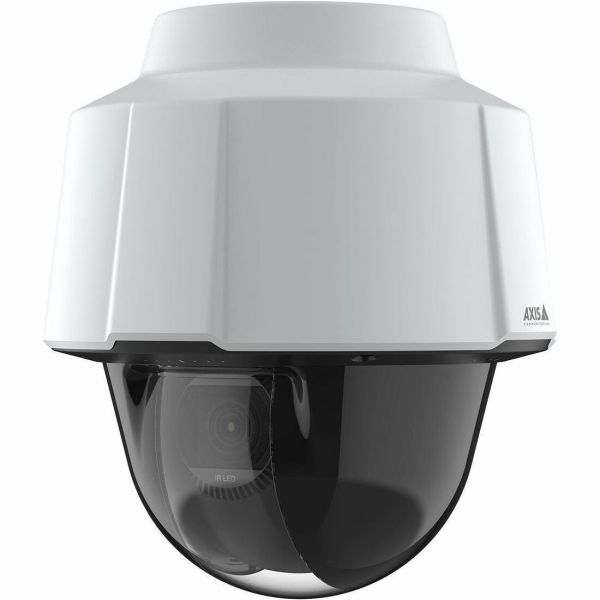

AXIS AXIS P5676-LE PTZ Camera

Marketing Information

Are you looking for a high-performance, cost-effective PTZ camera that delivers excellent overview and detail in any light conditions? AXIS P5676-LE offers 4 MP image quality and support for advanced analytics.

Excellent overview with 4 MP and IR

AXIS P5676-LE offers excellent 4 MP image quality with 30x optical zoom.Forensic WDRandLightfinder2.0 guarantee images with saturated colors and sharp details of moving objects even in challenging light or near darkness. Plus, with IR Illumination you get 24/7 coverage for surveillance in pitch darkness. It features Electronic Image Stabilization (EIS) for stable images despite vibration. And, with support fortwo-way audioand I/O connectivity you can listen in to transactions or... incidents. Furthermore, you can pop it into an AXIS Q6100-E using AXIS TP6901-E Adapter Bracket and enjoy 360° overview for total situational awareness.

Keeping you secure

This high-performance PTZ camera includes built-incybersecurityfeatures to safeguard your system and prevent unauthorized access. Signed firmware andsecure bootguarantees that the firmware hasn't been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.

And there's more...

AXIS P5676-LE offers superb light sensitivity and support for advanced analytics. It includes shock detection so you'll be informed if the camera has been hit. And Advanced Gatekeeper will automatically zoom in on objects detected in pre-defined areas. Thanks to AXIS Object Analytics it can detect and classify people and vehicles-all tailored to your specific needs. It offers support for PoE and AC/DC. And AxisZipstreamwith H.264/H.265 significantly lowers bandwidth and storage requirements. Furthermore, this robust vandal-resistant camera with IP66,NEMA 4Xand IK10 ratings can handle temperatures ranging from -30°C to 50°C (-22°F to 122°F).

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02413-001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Line: High Performance
Product Series: P56
Product Model: P5676-LE
Product Name: AXIS P5676-LE PTZ Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 200 m
Night Vision Type: Infrared
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/2.9"
Colour Supported: Colour
Field of View: Horizontal field of view 57.1-2.1 °/ Vertical field of view 34.4-1.2 °
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:

• Zipstream
• H.264
• H.264B
• H.264M
• H.264H
• H.265
• H.265B
• H.265M
• H.265H
• Motion JPEG

Maximum Video Resolution: 2688 x 1512
Maximum Frame Rate: 60 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 4.60 mm
Maximum Focal Length: 133 mm
Lens Included: Yes
Minimum Aperture: f/4.6
Maximum Aperture: f/1.6
Optical Zoom: 30x
Exposure
Shortest Shutter Speed: 1/50000 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Power Source Type: PoE
Physical Characteristics
Durability: Vandal Resistant
Color Family: White
Product Color: White
Height: 242 mm
Diameter: 205 mm
Weight (Approximate): 2.50 kg
Environmental Conditions
Minimum Operating Temperature: -30°C
Maximum Operating Temperature: 50°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Wide Dynamic Range
• Day/Night
• Shock Detection
• Motion Detection
• Audio Detection
• Vehicle Detection
• Human Detection
• Video Management System
• SD Card Local Storage
• Built-in Microphone
• Built-in IR LED
• PTZ

Indoor/Outdoor: Outdoor
Package Contents:

• AXIS P5676-LE PTZ Camera
• RJ45 Push-pull plug (IP66)
• Installation guide
• Windows decoder 1-user license

Impact Protection Rating: IK10
Ingress Protection Rating: IP66
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 5 Year
