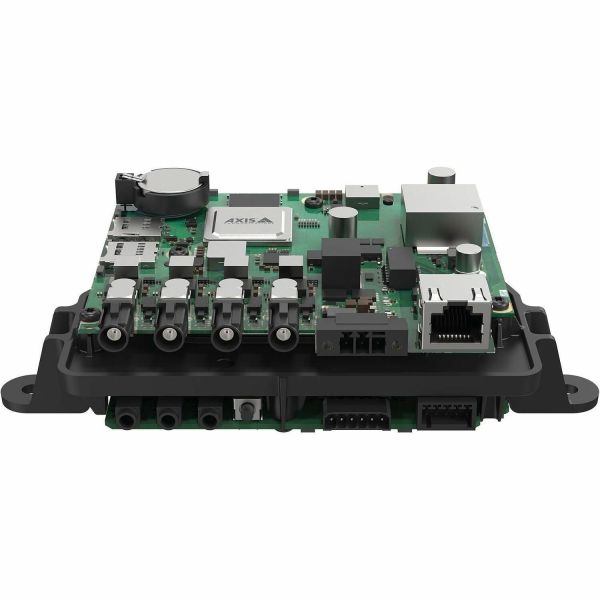

AXIS F9114-B Main Unit

Marketing Information

AXIS F9114-B Main Unit is designed for use with 2nd generation sensors and cables from AXIS F Series. Ideal for building customized video solutions, this UL recognized component is designed for integration into a UL certified end-product. It uses sensor units and cables with SMA-FAKRA connectors available from Axis.

Smart features

This barebone main unit supports four sensor units and requires only one video management software (VMS) license. Ideal for emergency vehicles and buses, it includes ignition control functionality with controlled shutdown to ensure you don't drain the vehicle's battery. It supportstwo-way audioand I/O so it's possible to connect a digital or analog microphone allowing you to listen in and trigger audio war...nings. Furthermore, it offers AxisZipstream with support for H.264 and H.265 for reduced storage and bandwidth requirements without compromising image quality.

High performance and maximum flexibility

With four HDTV 1080p video streams at 30 fps on all channels, AXIS F9114-B delivers high-quality video even in challenging and low light conditions. Thanks toForensic WDR, it provides clarity when there's both dark and light areas in the scene. Axis Lightfinder captures sharp, color images in low light. Based on a divided network camera concept, this main unit allows for maximum flexibility where both the sensor unit as well as cable type and length are chosen based on your needs. Both AXIS F Series sensors and cables available from Axis use SMA-FAKRA connectors to ensure rugged installations.

Easy integration and built-in cybersecurity

AXIS F9114-B is excellent for building your own customized solutions. Sold without a casing, this UL recognized component makes it perfect for integration into a UL certified end-product. This is ideal for customers who want to integrate into other devices such as ATMs and ticket machines. Furthermore, it includes built-incybersecurity features to help prevent unauthorized access and safeguard your system. For instance, AxisEdge Vaultprotects your Axis device ID and simplifies authorization of Axis devices on your network.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 01991031
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: F
Product Model: F9114-B
Product Name: F9114-B Main Unit
Product Type: Surveillance Camera Main Unit
Miscellaneous
Application/Usage:

• Surveillance Camera
• Barebone Unit
• Sensor
• Cable

Compatibility:

Axis Sensors :

• F2105-RE Standard Sensor
• F2115-R Varifocal Sensor
• F2135-RE Fisheye Sensor
• F4105-LRE Dome Sensor
• F7225-RE Pinhole Sensor
