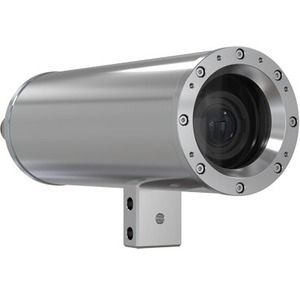

AXIS ExCam XF P1377 Explosion-Protected Camera

Marketing Information

ExCam XF P1377 is designed to deliver sharp images of people and objects even in challenging light conditions. Enclosed in a stainless steel housing, it's internationally certified (ATEX, IECEx, EAC Ex, IA and CCOE) for use in potentially combustible environments and can withstand temperatures as low as -60 °C and as high as 60 °C (-76 °F to 140°F). It offers high quality, high resolution images, built-in cybersecurity features, extended capabilities for analytics and significantly more efficient video compression.

Packed with valuable functionality

This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and s...ecure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. Based on open standards, ExCam XF P1377 supports a wide range of 3rd party analytics so it's easy to add analytics and other applications to meet specific security and business requirements.

Excellent image quality in any light

With 25/30 fps in 5 MP and up to 180 fps in HDTV 720p, ExCam XF P1377 captures excellent detailed images of fast-moving people and objects. It offers Axis Forensic WDR for high-quality images even when there's both dark and light areas in the scene and Axis Lightfinder for sharp, color images in poor lighting conditions. Additionally, it features electronic image stabilization for stable images in situations where the camera is subject to vibrations. Axis Zipstream with support for H.264/H.265 provides exceptional savings on bandwidth and storage requirements without compromising image quality.

For demanding conditions

With a robust, explosion-protected housing, ExCam XF P1377 is certified for use in potentially combustible environments, according to international standards ATEX, IECEx, EAC Ex, IA and CCOE. It can withstand temperatures as low as -60 °C and as high as 60 °C (-76 °F to 140°F).

ExCam XF P1377 also makes installation and configuration fast, easy, and cost-effective. It's powered by Power over Ethernet (PoE) with just one ethernet cable for both power and network access. It comes with a pre-connected 5 m (16 ft) non-armored cable. And, intelligent i-CS lens technology facilitates fast and easy configuration with remote zoom.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 01929001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Line: ExCam
Product Model: XF P1377
Product Name: ExCam XF P1377 Explosion-Protected Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Display & Graphics
Image Sensor Type: RGB CMOS
Colour Supported: Colour
Field of View: 4:3 aspect ratio: Horizontal field of view: 75°-31° - Vertical field of view: 55°-23° 16:9 aspect ratio: Horizontal field of view: 75°-31° - Vertical field of view: 41°-17°
Effective Camera Resolution: 5 Megapixel
Video
Video Formats:

• H.264
• H.264 (MPEG-4 Part 10/AVC)
• H.264 BP
• H.264 (MP)
• H.264 HP
• H.265
• H.265 (MPEG-H Part 2/HEVC)
• Motion JPEG

Maximum Video Resolution: 2592 x 1944
Maximum Frame Rate: 180 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 3.90 mm
Maximum Focal Length: 10 mm
Lens Included: Yes
Lens Mount Type: CS-Mount
Maximum Aperture: f/1.5
Optical Zoom: 2.6x
Exposure
Shortest Shutter Speed: 1/33500 Second
Longest Shutter Speed: 1/5000 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 26 V DC
Physical Characteristics
Mount Type:

• Junction Box Mount
• Pole Mount
• Wall Mount

Durability: Explosion Proof
Weight (Approximate): 6.20 kg
Environmental Conditions
Minimum Operating Temperature: -50°C
Maximum Operating Temperature: 60°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Wide Dynamic Range
• Electronic Image Stabilization
• Day/Night
• Removable IR Cut-off Filter
• White Balance
• Privacy Masking
• Defog
• PTZ
• Microphone In
• Built-in Microphone
• Password Protection
• HTTPS Encryption
• Shock Detection
• SD Card Local Storage
• Motion Detection
• Active Tampering Alarm

Indoor/Outdoor: Outdoor
Ingress Protection Rating: IP66
