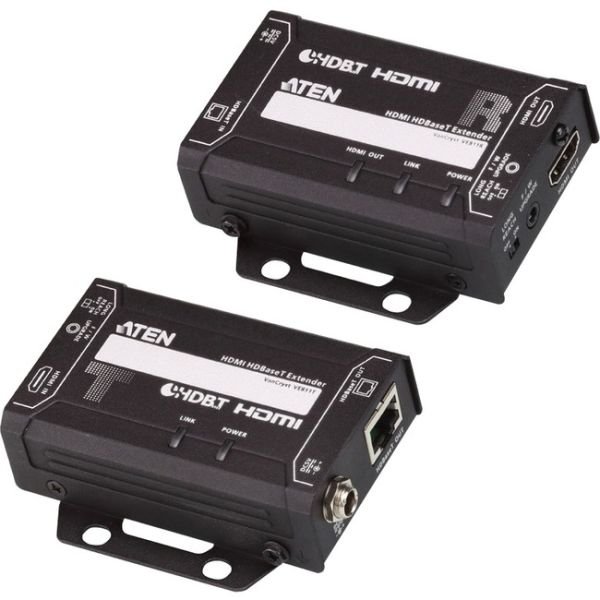

ATEN HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)

Marketing Information

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.

Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today's digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video ...to be extended for great distances.

More from the Manufacturer

Specifications
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: VE811
Manufacturer Website Address: http://www.aten.com
Brand Name: ATEN
Product Line: VanCryst
Product Model: VE811
Product Name: HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)
Product Type: Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 150 m
Video
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Physical Characteristics
Transmitter Height: 24.70 mm
Transmitter Width: 73 mm
Transmitter Depth: 86.40 mm
Form Factor:

• Surface-mountable
• Rack-mountable

Transmitter Weight (Approximate): 330 g
