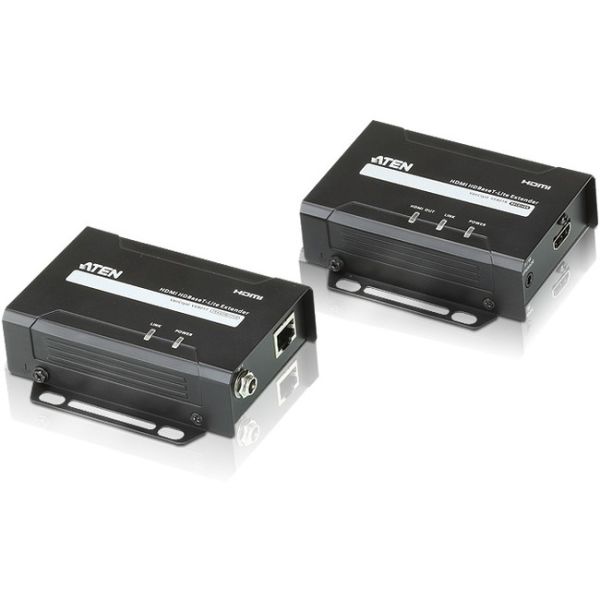

ATEN VanCryst VE801 Video Extender Transmitter/Receiver - Wired

Marketing Information
The VE801 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.

...void(0)" onclick="javascript:window.open('//content.etilize.com/mini-site/en_uk/1030969925.html','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: VE801
Manufacturer Website Address: http://www.aten.com
Brand Name: ATEN
Product Line: VanCryst
Product Model: VE801
Product Name: HDMI HDBaseT-Lite Extender (HDBaseT Class B)
Product Type: Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 1.80 m
Video
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Physical Characteristics
Product Material: Metal
Transmitter Height: 30 mm
Transmitter Width: 87 mm
Transmitter Depth: 103 mm
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 490 g
