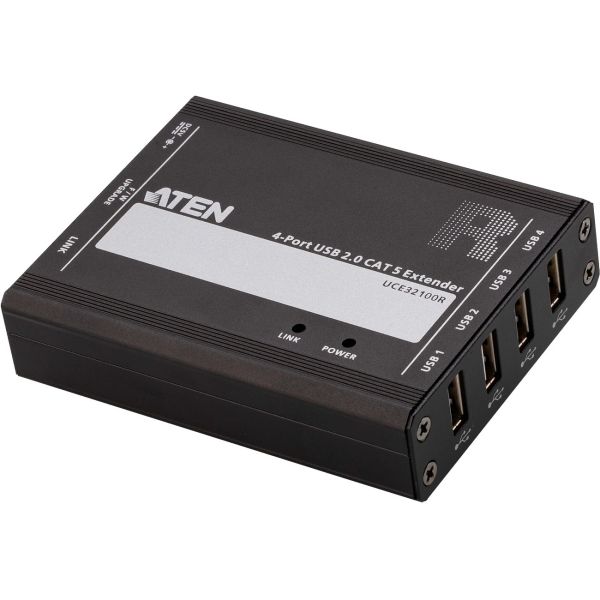

ATEN 4-port USB 2.0 CAT 5 Extender (100m)

Marketing Information

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and ...flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

Specifications
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: UCE32100
Manufacturer Website Address: http://www.aten.com
Brand Name: ATEN
Product Model: UCE32100
Product Name: 4-port USB 2.0 CAT 5 Extender (100m)
Product Type: Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 100 mm
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 7
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5
Physical Characteristics
Transmitter Height: 24.40 mm
Transmitter Width: 101.50 mm
Transmitter Depth: 79 mm
Receiver Height: 24.40 mm
Receiver Width: 101.50 mm
Receiver Depth: 79 mm
Form Factor:

• Rack-mountable
• Wall Mountable

Transmitter Weight (Approximate): 210 g
Receiver Weight (Approximate): 210 g
Miscellaneous
Package Contents:

• 1 x UCE32100T USB 2.0 CAT 5 Transmitter
• 1 x UCE32100R USB 2.0 CAT 5 Receiver
• 1 x USB 2.0 Type-A Male to Type-B Male Cable
• 1 x Power Adapter
• 1 x Power Cord
• 4 x Mounting Kit
• 2 x Din Rail
• 2 x DC Jack Lock Kit
• 2 x Rubber Feet Sets
• 1 x User Instructions
