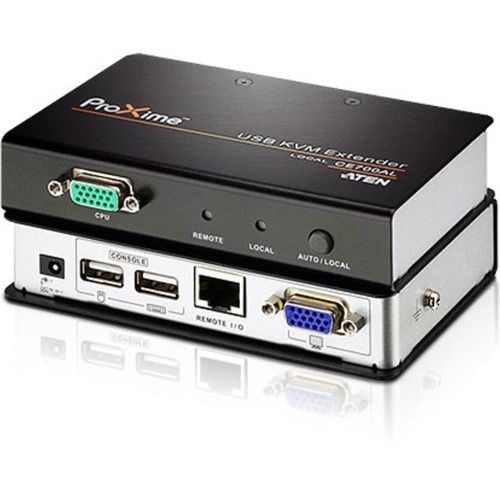

ATEN Proxime CE700A KVM Console/Extender

Marketing Information

The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.

...lse;">More from the Manufacturer

Specifications
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CE700A
Manufacturer Website Address: http://www.aten.com
Brand Name: ATEN
Product Line: ProXime
Product Model: CE700A
Product Name: Proxime CE700A KVM Console/Extender
Packaged Quantity: 1
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 1
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 150 m
Video
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Proprietary Interface: Yes
Number of VGA Ports: 2
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 4
Power Description
Input Voltage: 5.3 V DC
Physical Characteristics
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 320 g
Receiver Weight (Approximate): 310 g
Miscellaneous
Package Contents:

• Proxime CE700A KVM Console/Extender
• 2 x Power Adapters
• 1 x USB KVM Cable
• 2 x Grounding Wires
• 1 x Rack Mount Kit
• 1 x User Manual
• 1 x Quick Start Guide
