ATEN CL6700MW DVI Full HD LCD Console

Marketing Information

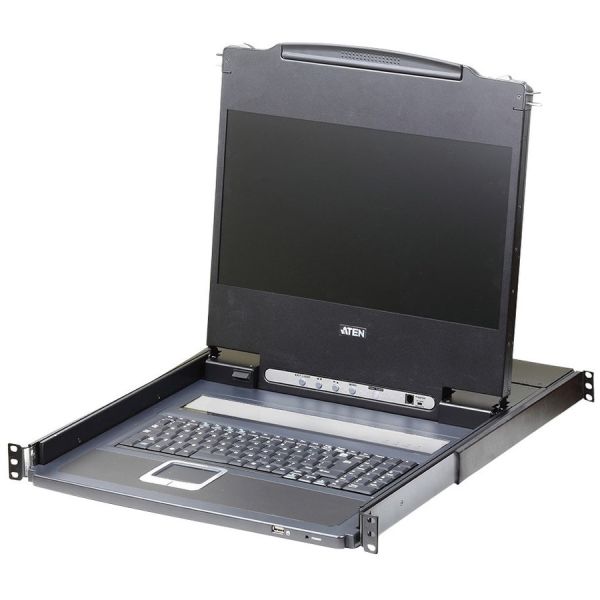

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3'' LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW's console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, a...nd/or an HDMI compatible switch to the KVM port.

The CL6700MW features a port for an external USB mouse on the unit's front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.

Specifications
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CL6700MW
Manufacturer Website Address: http://www.aten.com
Brand Name: ATEN
Product Name: CL6700MW DVI Full HD LCD Console
Product Type: LCD Rack Console
Technical Information
Device Type: LCD Rack Console
Display & Graphics
Screen Size: 43.9 cm (17.3")
Display Screen Type: LCD
Screen Mode: Full HD
Screen Resolution: 1920 x 1080
Input Devices
Keyboard: Yes
Pointing Device Type: TouchPad
Interfaces/Ports
USB: Yes
HDMI: Yes
DVI: Yes
VGA: Yes
Number of USB Ports: 5
Number of HDMI Ports: 2
Number of DVI Ports: 2
Number of VGA Ports: 2
Physical Characteristics
Product Material: Metal
Rack Height: 1U
Height: 44 mm
Width: 480 mm
Depth: 589.2 mm
Weight (Approximate): 11.38 kg
Miscellaneous
Platform Supported:

• Mac
• PC
• Linux
• Sun
