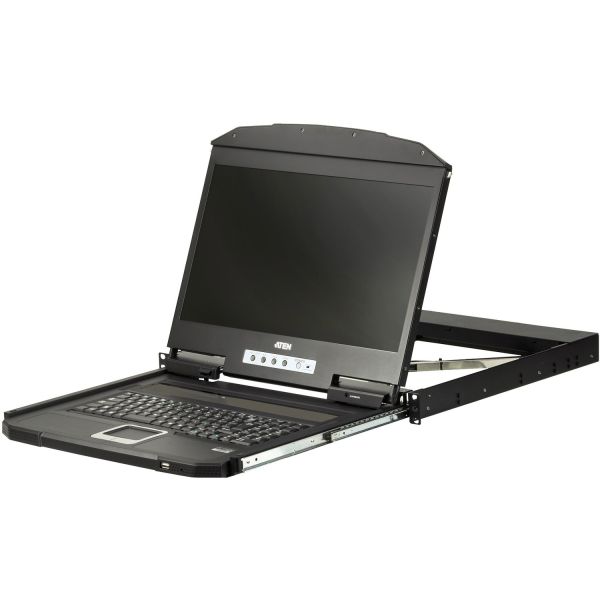

ATEN 1U Ultra Short Depth Single Rail WideScreen LCD Console (USB / HDMI)

Marketing Information

The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW's full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an ext...ernal USB mouse on the unit's front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.

With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

More from the Manufacturer

Specifications
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CL3700NW
Manufacturer Website Address: http://www.aten.com
Brand Name: ATEN
Product Model: CL3700NW
Product Name: 1U Ultra Short Depth Single Rail WideScreen LCD Console (USB / HDMI)
Product Type: LCD Rack Console
Technical Information
KVM Switch: No
Number of Computers Supported: 1
Display & Graphics
Screen Size: 47 cm (18.5")
Display Screen Type: LED
Screen Mode: Full HD
Screen Resolution: 1920 x 1080
Input Devices
Keyboard: Yes
Pointing Device Type: TouchPad
Interfaces/Ports
USB: Yes
HDMI: Yes
Number of USB Ports: 4
Number of HDMI Ports: 2
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range: 100V AC to 240V AC
Power Consumption: 23.90 W
Physical Characteristics
Product Material:

• Metal
• Plastic

Rack Height: 1U
Height: 42.8 mm
Width: 477 mm
Depth: 480.6 mm
Weight (Approximate): 9.01 kg
