ATEN KVM Console/Extender

Marketing Information

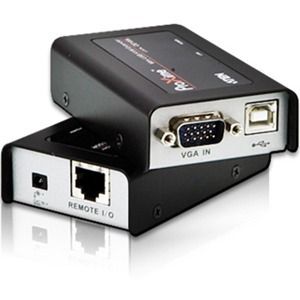

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.

...,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CE100
Manufacturer Website Address: http://www.aten.com
Brand Name: ATEN
Product Model: CE100
Product Name: KVM Console/Extender
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 1
Maximum Operating Distance: 100.58 m
Video
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of VGA Ports: 2
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 3
Power Description
Frequency: 60 Hz
