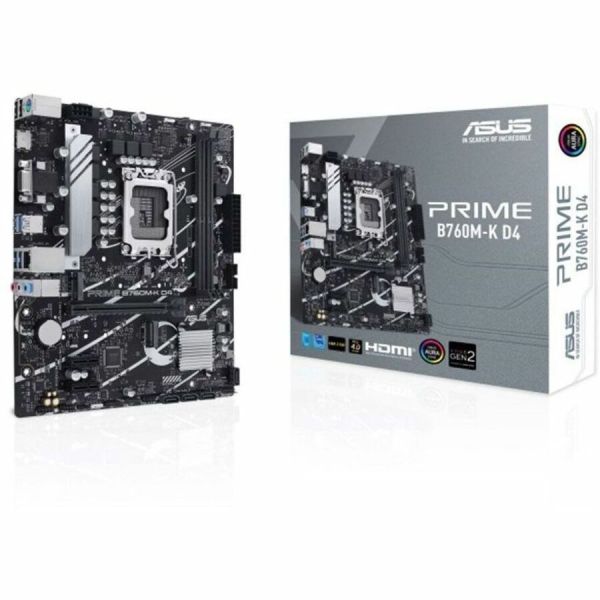

Asus PRIME B760M-K D4 Desktop Motherboard

Marketing Information

ASUS Prime B760M-K D4, an Intel^®B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI^®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

• Intel^®LGA 1700 Socket:Ready for 13^thand 12^thGen Intel^®processors
• Ultrafast Connectivity:PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
• ...an>Comprehensive Cooling:VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
• Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

PRIME B760M-K D4

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING

PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB1DS0M1EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus
Product Line: Prime
Product Model: B760M-K D4
Product Name: PRIME B760M-K D4 Desktop Motherboard
Product Type: Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: B760
Processor Socket: Socket LGA-1700
Processor Generation Supported:

• 14th Gen
• 13th Gen
• 12th Gen

Processor Supported:

• Pentium Gold
• Celeron
• Core

Memory
Number of Memory Slots: 2
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported:

• 5333 MHz
• 5066 MHz
• 5000 MHz
• 4800 MHz
• 4600 MHz
• 4400 MHz
• 4266 MHz
• 4000 MHz
• 3733 MHz
• 3600 MHz
• 3466 MHz
• 3400 MHz
• 3333 MHz
• 3200 MHz
• 3000 MHz
• 2933 MHz
• 2800 MHz
• 2666 MHz
• 2400 MHz
• 2133 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 3
PCI Express Standard: PCI Express 4.0
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Type-A Ports: 4
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 3
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: Micro ATX
Width: 243.8 mm
Depth: 210.8 mm
Miscellaneous
Package Contents:

• PRIME B760M-K D4 Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x 1/0 Shield
• 2 x M.2 anchors
• 1 x User guide

Brand Compatibility: Intel
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
