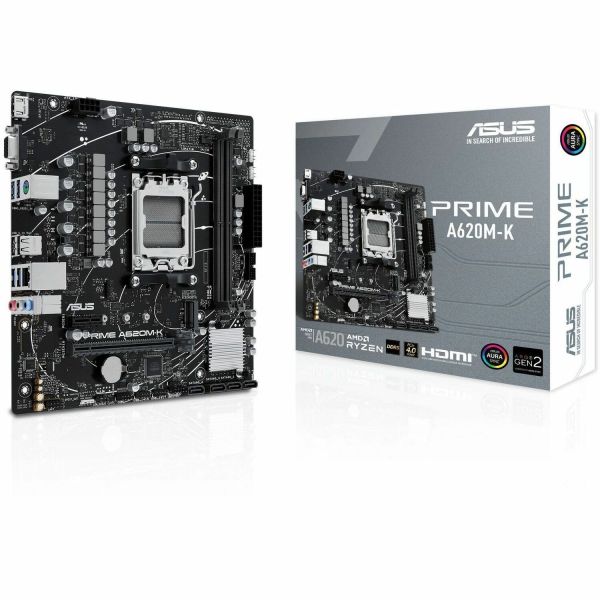

Asus Prime A620M-K Desktop Motherboard

Marketing Information

AMD A620 micro-ATX motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura SyncReady for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

• AM5 Socket for AMD Ryzen™ Desktop Processors
• Ultrafast Connectivity:PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
• ...rong>Comprehensive Cooling:PCH heatsink and Fan Xpert
• Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• Two-way AI Noise Cancelation:Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Prime A620M-K

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB1F40-M0EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus
Product Line: Prime
Product Model: A620M-K
Product Name: Prime A620M-K Desktop Motherboard
Product Type: Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: A620
Processor Socket: Socket AM5
Processor Supported:

• Ryzen 9
• Ryzen 8
• Ryzen 7

Memory
Number of Memory Slots: 2
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 96 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 7200 MHz
• 7000 MHz
• 6800 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 5000 MHz
• 4800 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 3
PCI Express Standard:

• PCI Express 4.0
• PCI Express 3.0

Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Type-A Ports: 4
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: Micro ATX
Width: 226 mm
Depth: 221 mm
