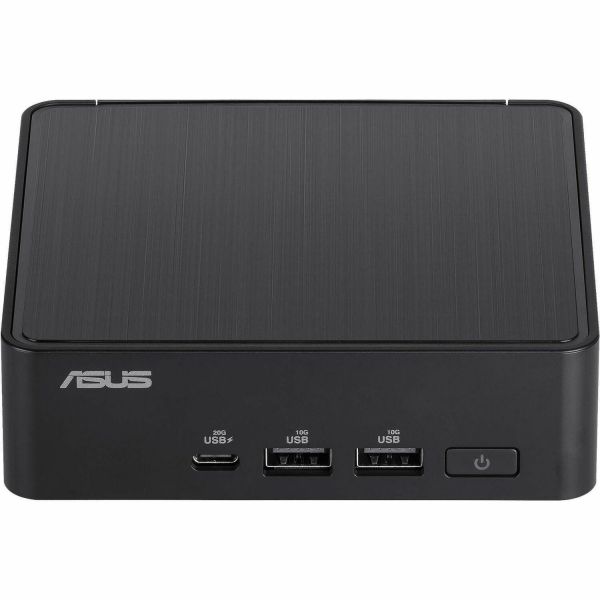

Asus NUC 14 Pro NUC14RVKI3 Barebone System

Marketing Information

Smaller, Faster, Better, AI Ready

The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.

Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a ...variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.

With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90AR0062-M00010
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus
Product Line: NUC 14 Pro
Product Model: NUC14RVKI3
Product Name: NUC 14 Pro NUC14RVKI3 Barebone System
Product Type: Barebone System
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Core 3
Processor Model: 100U
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Memory
Maximum Memory Supported: 96 GB
Memory Technology: DDR5 SDRAM
Memory Standard: DDR5-5600/PC5-44800
Total Number of Memory Slots: 2
Storage
Supported Storage Drive Interfaces: PCI Express NVMe 4.0 x4
Supported Storage Drive Types: SSD
Controllers
Controller Type: NVMe
Display & Graphics
Graphics Memory Technology: DDR5 SDRAM
Graphics Memory Accessibility: Shared
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
I/O Expansions
Number of M.2 Interfaces: 2
Interfaces/Ports
HDMI (Rear): Yes
Total Number of USB Ports: 5
Number of USB 3.2 Gen 2 Ports: 3
USB Type-C (Front): Yes
USB Type-C Detail: 1 x USB 3.2 Gen2x2 Type C (20Gbps)
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of Thunderbolt 4 Ports: 2
Operating System
Operating System Supported:

• Windows 11
• Linux

Power Description
Maximum Power Supply Wattage: 90 W
Thermal Design Power: 40 W
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 37 mm
Width: 117 mm
Depth: 112 mm
Weight (Approximate): 480 g
