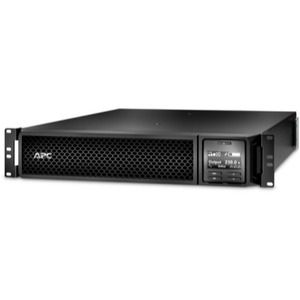

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 1.50 kVA/1.50 kW

Marketing Information

Smart-UPS On-Line

High density, double-conversion on-line power protection with scalable runtime

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute manage...ment software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT1500RMXLI-NC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SRT
Product Name: Smart-UPS 1.5KVA Tower/Rack Convertible UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type:

• British BS1363A
• IEC 60320 C14
• SCHUKO CEE 7 EU1-16P

Receptacle Type: IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C13
Overload Protection: Yes
Transfer Time: 0 ns
Application/Usage:

• Server
• Industry
• IT Equipment
• Computer
• Network

Power Description
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.50 kW
Input Voltage: 230 V AC
Output Voltage:

• 220 V AC
• 230 V AC
• 240 V AC

Input Frequency: 70 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 432 J
Controls/Indicators
Status Indicators:

• LCD Graphics Screen
• Audible Alarm

Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
DC System Voltage: 48 V DC
Number of Batteries: 1
Battery Characteristics: Maintenance-free, Sealed, Leak-proof
Battery Chemistry: Lead Acid
Battery Size: 48V
Backup/Run Time (Full Load): 5.20 Minute
Backup/Run Time (Half Load): 14.20 Minute
Typical Battery Recharge Time: 3 Hour
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -20°C - 50°C
Maximum Operating Elevation: 3 km
Maximum Storage Elevation: 15 km
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 50 dB(A)
Thermal Dissipation: 317 BTU/h
Physical Characteristics
Color Family: Black
Height: 85 mm
Width: 432 mm
Depth: 505 mm
Rack Height: 2U
Form Factor: Tower/Rack Convertible
Weight (Approximate): 21 kg
Miscellaneous
Software Included: APC PowerChute Network Shutdown Software
