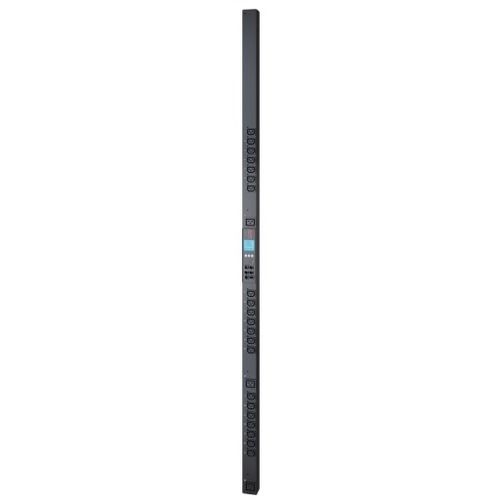

APC by Schneider Electric Metered-by-Outlet Rack 24-Outlets PDU

Marketing Information

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8659EU3
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Name: Metered-by-Outlet Rack 24-Outlets PDU
Product Type: PDU
Technical Information
Plug/Connector Type: IEC 60309 16A 2P+E
Receptacle Type:

• IEC 60320 C19
• IEC 60320 C13

Receptacle Detail:

• 3 x IEC 60320 C19
• 21 x IEC 60320 C13

Power Description
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Management
Management:

Protocols:

• Web
• SNMP
• Telnet

Physical Characteristics
Mount Type: Rack-mountable
Weight (Approximate): 6.77 kg
Miscellaneous
Package Contents:

• Metered-by-Outlet Rack 24-Outlets PDU
• CAN Port Terminator
• Installation Guide
• Locking Input Power Cord
• Rack Mounting Brackets
• Safety Guide
• Serial Configuration Cable

Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 2 Year
