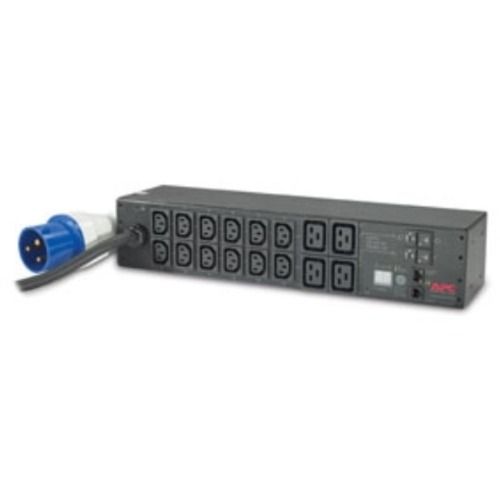

APC by Schneider Electric Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19

Marketing Information
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP7822B
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Name: Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19
Product Type: PDU
Technical Information
PDU Type: Metered
Plug/Connector Type: IEC 60309 32A 2P+E
Plug/Connector Detail: 1 x IEC 60309 32A 2P+E
Receptacle Type:

• IEC 60309 C13
• IEC 60320 C19

Receptacle Detail:

• 12 x IEC 60309 C13
• 4 x IEC 60320 C19

Power Description
Output Voltage: 230 V AC
Physical Characteristics
Mount Type: Rack-mountable
Rack Height: 2U
Height: 88 mm
Width: 444 mm
Depth: 112 mm
Weight (Approximate): 3.36 kg
