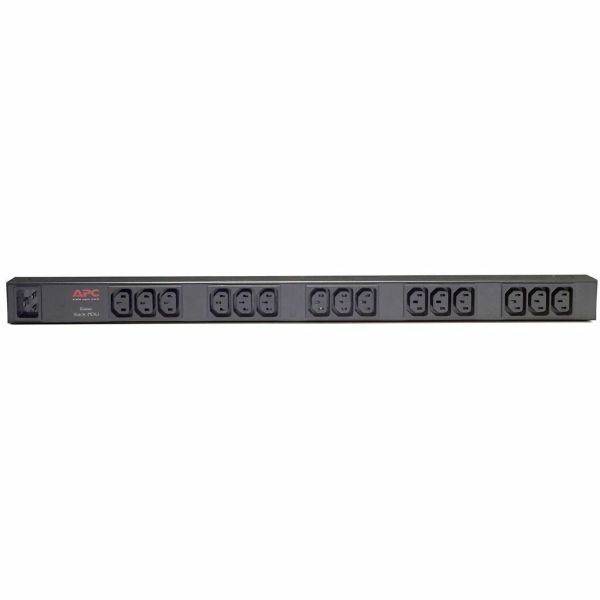

APC by Schneider Electric Basic Rack 3.68kVA PDU

Marketing Information

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 15 IEC 60320 C13 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP9572
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Series: Basic
Product Name: Basic Rack 3.68kVA PDU
Product Type: PDU
Technical Information
PDU Type: Basic
Plug/Connector Type: IEC 60320 C20
Receptacle Type: IEC 60320 C13
Receptacle Detail: 15 x IEC 60320 C13
Number of Protected Output Receptacles: 15
Power Description
Input Voltage:

• 200 V
• 208 V
• 230 V

Input Voltage Range: 120 V AC - 230 V AC
Output Voltage:

• 200 V AC
• 208 V AC
• 230 V AC

Power Rating (VA): 3.68 kVA
Physical Characteristics
Mounting Orientation: Vertical
Mounting Preference: No Preference
Mount Type: Rack-mountable
Placement: Side
Rack Height: 0U
Cord Length: 2.50 m
Height: 620 mm
Width: 44 mm
Depth: 44 mm
Weight (Approximate): 2 kg
Miscellaneous
For Country/Region: United States
Optimized Energy Efficiency: Yes
Product Take Back Program: Yes
REACH free of SVHC: Yes
Lead Free: Yes
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759582&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759582&lang=en-us
Environmental Profile Availability: https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN
End of Life Manual Availability: https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
California Proposition 65 Warning: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WEEE Statement: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
