APC by Schneider Electric NetShelter 12-Outlets PDU

Marketing Information

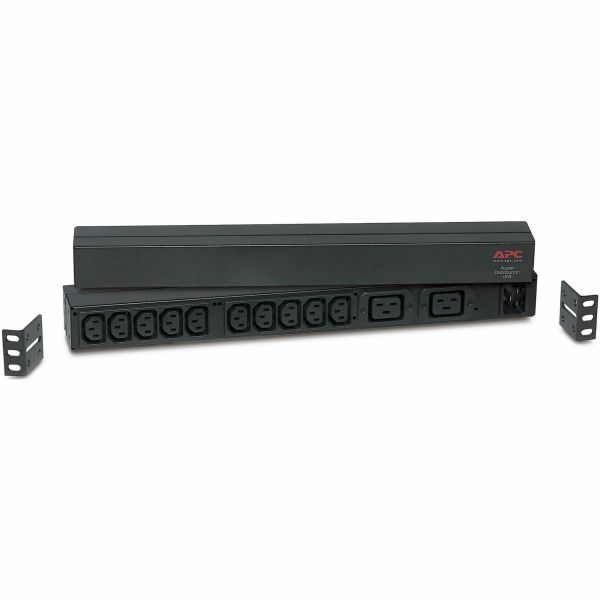

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 10 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP9559
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Name: NetShelter 12-Outlets PDU
Packaged Quantity: 1 Each
Product Type: PDU
Technical Information
PDU Type: Basic
Plug/Connector Type: IEC 60320 C20
Plug/Connector Detail: 1 x IEC 60320 C20
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail:

• 10 x IEC 60320 C13
• 2 x IEC 60320 C19

Load Capacity (VA): 3.68 kW
Power Description
Input Voltage:

• 120 V
• 208 V
• 230 V

Input Voltage Range: 90 V AC - 250 V AC
Output Voltage:

• 120 V AC
• 208 V AC
• 230 V AC

Input Current: 16 A
Input Frequency: 60 Hz
Physical Characteristics
Color Family: Black
Product Color: Black
Mounting Orientation: Horizontal
Mounting Preference: No Preference
Mount Type: Rack-mountable
Rack Height: 1U
Cord Length: 2.50 m
Height: 44 mm
Width: 447 mm
Depth: 57 mm
Weight (Approximate): 979.8 g
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 45°C
Minimum Operating Humidity: 0%
Maximum Operating Humidity: 95%
Minimum Storage Temperature: -25°C
Maximum Storage Temperature: 65°C
Miscellaneous
For Country/Region: United States
Additional Information:

• Maximum Line Current per phase: 16 A
• Always on Outlets: 12

Optimized Energy Efficiency: Yes
Product Take Back Program: Yes
REACH free of SVHC: Yes
Lead Free: Yes
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759556&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759556&lang=en-us
Environmental Profile Availability: https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN
End of Life Manual Availability: https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
California Proposition 65 Warning: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WEEE Statement: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty
Parts Warranty/Labor: 2 Year
