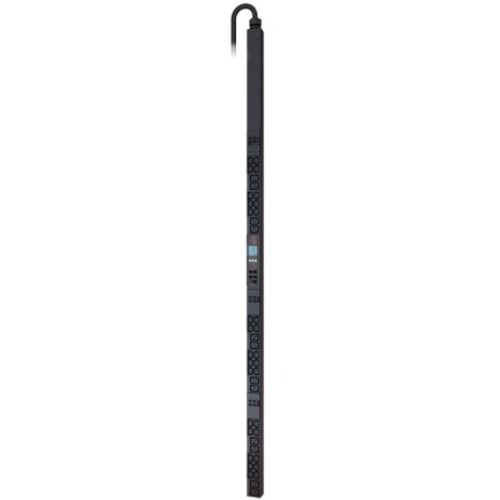

APC by Schneider Electric Metered Rack 42-Outlets PDU

Marketing Information

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8886
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Series: Metered
Product Name: Metered Rack 42-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Metered
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail:

• 30 x IEC 60320 C13
• 12 x IEC 60320 C19

Protection Type: Overload Protection
Power Description
Output Voltage: 230 V AC
Power Rating (Watt): 22 kW
Management
Management:

プロトコル:

• SNMP
• Telnet
• Web

Physical Characteristics
Mount Type: Rack-mountable
Height: 1829 mm
Width: 56 mm
Depth: 51 mm
Weight (Approximate): 8.72 kg
Miscellaneous
Package Contents:

• Metered Rack 42-Outlets PDU
• Installation Guide
• Rack Mounting Brackets
• Safety Guide
• Serial Configuration Cable

Additional Information:

Input Connection: IEC 309 32A 3P+N+E

Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 2 Year
