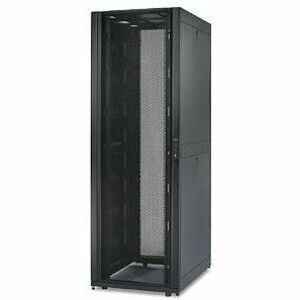

APC by Schneider Electric NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4H x 750W x 1070D mm

Marketing Information
An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways. Wide rack design allows for additional space beside the vertical mounting rails for passing cabling from front-to-back in the enclosure. It provides plenty of clearance at the back for Rack PDUs and cable managers not to interfere with IT device hot swappable components. The width is ideal for converged and hyperconverged IT which include a mix of server, storage, and network switches all in one rack.

More from the Manufacturer

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AR3150
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Name: NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4H x 750W x 1070D mm
Packaged Quantity: 1
Product Type: Rack Cabinet
Technical Information
Rack Type: Enclosed Cabinet
Application/Usage:

• Blade Server
• Converged Infrastructure

Mounting Preference: No Preference
Physical Characteristics
Color Family: Black
Product Color: Black
Units Per Pallet: 1
Dynamic/Rolling Weight Capacity: 1020.58 kg
Static/Stationary Weight Capacity: 1360.78 kg
Door Material Gauge: 18
Rail Material Gauge: 14
Roof/Top Material Gauge: 18
Side Panel Material Gauge: 18
Height: 1991 mm
Width: 750 mm
Depth: 1070 mm
Weight (Approximate): 155.96 kg
Rack Height: 42U
Rack Width: 482.60 mm
Miscellaneous
For Country/Region: United States
Additional Information:

• Adjustable Front Vertical Mounting Rail
• Adjustable mounting depth
• Cable Access
• Deep form factor (42"/1070mm)
• Door ventilation exceeds 830 in2 (5355 cm2)
• Expanded Cable Management
• Facilitates overhead cable management
• Facilitates overhead power distribution
• Facilitates rear/vertical cable management
• Mounts two APC metered PDUs in one rear channel
• Multi-vendor equipment compatibility
• Numbered U positions
• Optimized depth
• Protective grounding provisions
• Provides Mounting Option for PDUs
• Provides security between enclosures when bayed together
• Quick release doors
• Quick release side panels
• Removable doors and side panels
• Reversible doors
• Rolls through a 2 meter doorway
• Ships fully assembled
• Split rear doors
• Tool-less mounting
• UBC Zone 4 stabilization provisions
• Ventilated Doors with Scalable Cooling Options
• Vertical Mounting Rails with square holes
• Wide form factor (29.5"/750mm)

Product Take Back Program: Yes
RoHS Exemption Information: https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3150_ROHS_DECLARATION&p_FileName=AR3150KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760068&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760068&lang=en-us
Environmental Profile Availability: https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008
End of Life Manual Availability: https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHC: Yes
TAA Compliant: Yes
