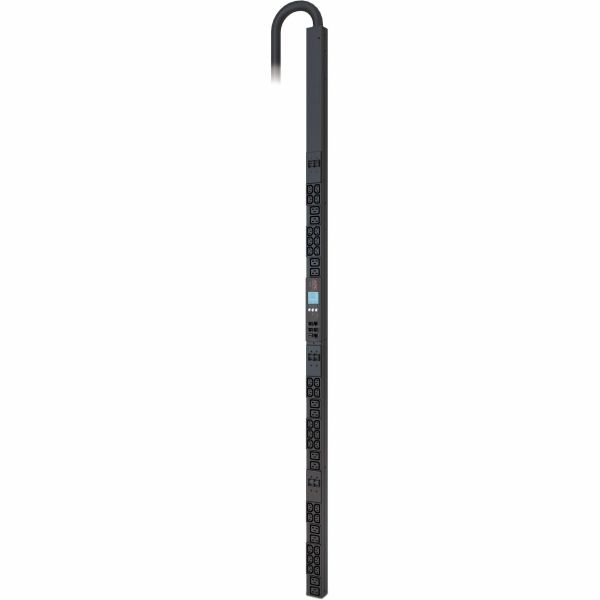

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19

Marketing Information

Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8888
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Metered Rack
Product Name: Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19
Packaged Quantity: 1 Each
Product Type: PDU
Technical Information
PDU Type: Metered
Plug/Connector Type: IEC 60309 60A 3P+N+E
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail:

• 30 x IEC 60320 C13
• 12 x IEC 60320 C19

Protection Type: Overload Protection
Power Description
Input Voltage: 400 V
Output Voltage: 240 V AC
Power Rating (VA): 23 kVA
Management
Management:

Protocols:

• SNMP
• Telnet
• Web

Physical Characteristics
Color Family: Black
Product Color: Black
Mounting Preference: No Preference
Mount Type: Rack-mountable
Placement: Side
Number of Cord/Cable: 1
Cord Length: 1.83 m
Height: 1829 mm
Width: 56 mm
Depth: 51 mm
Weight (Approximate): 10.10 kg
Miscellaneous
For Country/Region: United States
Additional Information:

Input Connections: IEC 309 30A 3P+N+E

Optimized Energy Efficiency: Yes
Product Take Back Program: Yes
REACH free of SVHC: Yes
Mercury Free: Yes
Lead Free: Yes
RoHS Exemption Information: https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8888_ROHS_DECLARATION&p_FileName=AP8888KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194468&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194468&lang=en-us
Environmental Profile Availability: https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
End of Life Manual Availability: https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
