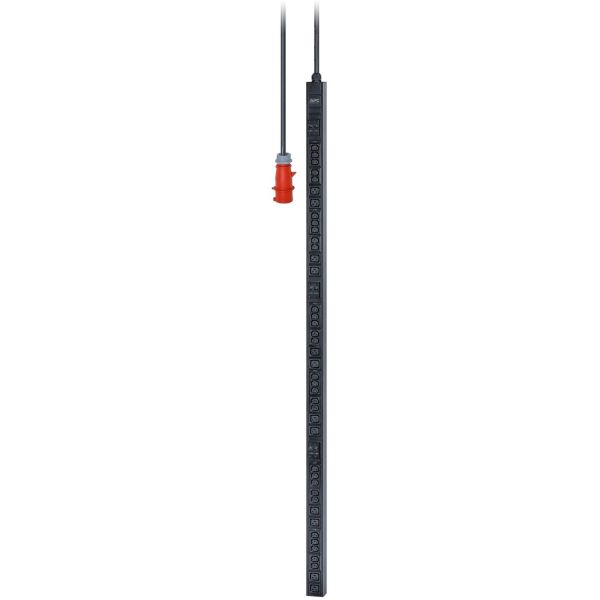

APC by Schneider Electric Easy Basic Rack EPDU1232B PDU

Marketing Information

Easy Basic Rack PDU

Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.

APC Easy Basic Rack PDU provides reliable rack power distribution for server rack and network rack via a single input with multiple output receptacles and distribute power from low amperage single phase circuits to higher-power 3 phase power solutions.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: EPDU1232B
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electr...ic
Product Line: Easy Basic Rack
Product Model: EPDU1232B
Product Name: Easy Basic Rack EPDU1232B 42-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Basic
Phase: Three Phase
Plug/Connector Type: IEC 309 32A 3P+N+PE
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail:

• 30 x IEC 60320 C13
• 12 x IEC 60320 C19

Power Description
Input Voltage: 400 V AC
Output Voltage: 230 V AC
Power Rating (VA): 22 kVA
Power Rating (Watt): 22 kW
Input Current: 32 A
Physical Characteristics
Mounting Orientation: Horizontal/Vertical/Toolless
Mount Type: Rack-mountable
Rack Height: 0U
Height: 1794 mm
Width: 62 mm
Depth: 44 mm
Weight (Approximate): 5.14 kg
Miscellaneous
Package Contents:

• Easy Basic Rack EPDU1232B 42-Outlets PDU
• Installation Guide
• Toolless Mounting Kit
• Vertical Mounting Brackets

Warranty
Limited Warranty: 1 Year
