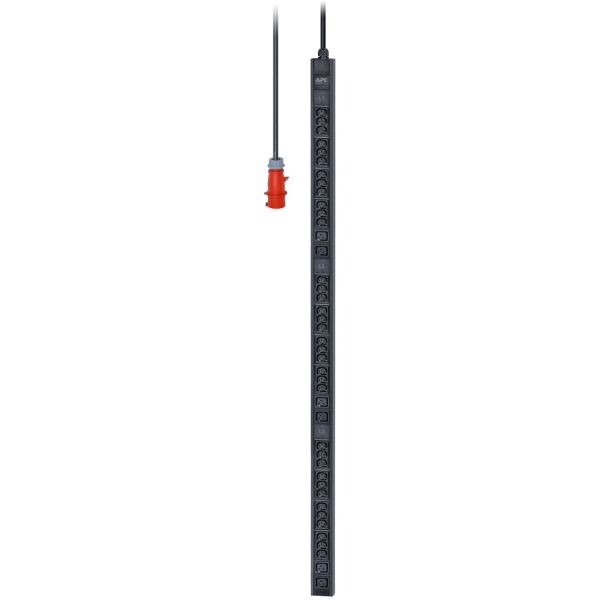

APC by Schneider Electric Easy Basic Rack EPDU1216B 42-Outlets PDU
SKU
1062609077
£523.00
Limited Stock: Only 0 available
Only 1 left
APC by Schneider Electric Easy Basic Rack EPDU1216B 42-Outlets PDU
APC by Schneider Electric Easy Basic Rack EPDU1216B 42-Outlets PDU is available to buy in increments of 1
Categories: PDUs, Default Category
Marketing Information
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: EPDU1216B
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Easy Basic Rack
Product Model: EPDU1216B
Product Name: Easy Basic Rack EPDU1216B 42-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Basic
Phase: Three Phase
Plug/Connector Type: IEC 309 16A 3P+N+PE
Receptacle Type:
Receptacle Detail:
Power Description
Input Voltage: 400 V AC
Output Voltage: 230 V AC
Power Rating (VA): 11 kVA
Power Rating (Watt): 11 kW
Input Current: 16 A
Physical Characteristics
Mounting Orientation: Horizontal/Vertical/Toolless
Mount Type: Rack-mountable
Rack Height: 0U
Height: 1506 mm
Width: 62 mm
Depth: 44 mm
Weight (Approximate): 3.08 kg
Warranty
Limited Warranty: 1 Year
Easy Basic Rack PDU
Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.
APC Easy Basic Rack PDU provides reliable rack power distribution for server rack and network rack via a single input with multiple output receptacles and distribute power from low amperage single phase circuits to higher-power 3 phase power solutions.
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: EPDU1216B
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Easy Basic Rack
Product Model: EPDU1216B
Product Name: Easy Basic Rack EPDU1216B 42-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Basic
Phase: Three Phase
Plug/Connector Type: IEC 309 16A 3P+N+PE
Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
Receptacle Detail:
- 36 x IEC 60320 C13
- 6 x IEC 60320 C19
Power Description
Input Voltage: 400 V AC
Output Voltage: 230 V AC
Power Rating (VA): 11 kVA
Power Rating (Watt): 11 kW
Input Current: 16 A
Physical Characteristics
Mounting Orientation: Horizontal/Vertical/Toolless
Mount Type: Rack-mountable
Rack Height: 0U
Height: 1506 mm
Width: 62 mm
Depth: 44 mm
Weight (Approximate): 3.08 kg
Warranty
Limited Warranty: 1 Year
| Product Type | PDU |
|---|---|
| Input Voltage | 400 V AC |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 309 16A 3P+N+PE |
| Input Voltage Range | 0U |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13/IEC 60320 C19 |
| Product Family | Easy Basic Rack |
| PDU Type | Basic |
| Mounting Orientation | Horizontal/Vertical/Toolless |
| Power Rating (VA) | 11 kVA |
| Power Rating (Watt) | 11 kW |
| Receptacle Detail | 36 x IEC 60320 C13/6 x IEC 60320 C19 |
