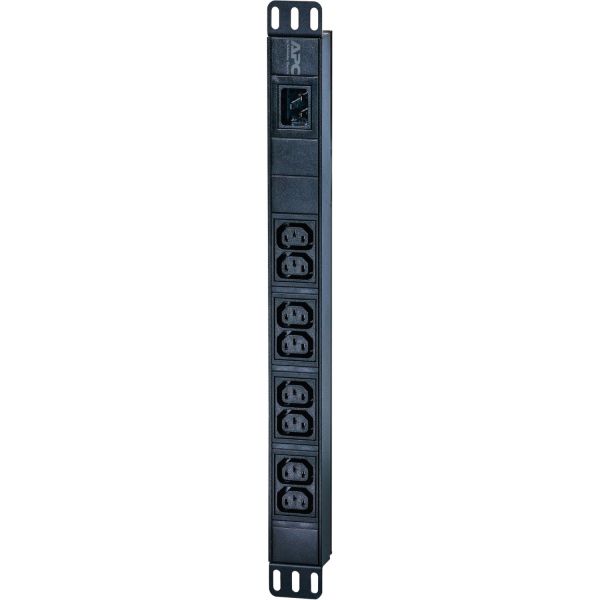

APC by Schneider Electric Easy Basic Rack EPDU1016B 8-Outlets PDU

Marketing Information

Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.

APC Easy Basic Rack PDU provides reliable rack power distribution for server rack and network rack via a single input with multiple output receptacles and distribute power from low amperage single phase circuits to higher-power 3 phase power solutions.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: EPDU1016B
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Easy Basic Rack
Product Model: EPDU1016B
Product Name: Easy Basic Rack EPDU1016B 8-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Basic
Phase: Three Phase
Plug/Connector Type: IEC 60320 C20
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Power Description
Input Voltage: 230 V AC
Output Voltage:

• 208 V AC
• 230 V AC

Power Rating (VA): 3.68 kVA
Power Rating (Watt): 14.40 kW
Input Current: 16 A
Physical Characteristics
Mounting Orientation: Horizontal/Vertical/Toolless
Mount Type: Rack-mountable
Rack Height: 1U
Height: 44 mm
Width: 482 mm
Depth: 44 mm
Weight (Approximate): 580 g
Miscellaneous
Package Contents:

• Easy Basic Rack EPDU1016B 8-Outlets PDU
• Installation Guide
• Rack Mounting Brackets
• User Manual

Warranty
Limited Warranty: 1 Year
