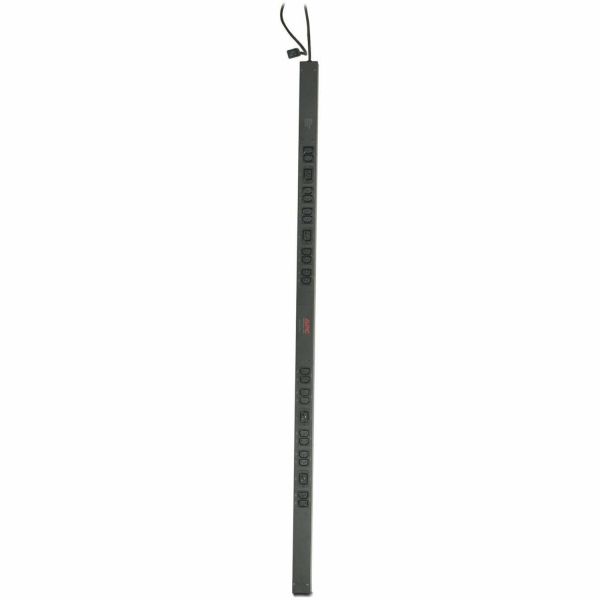

APC by Schneider Electric Basic Rack 3680VA PDU

Marketing Information

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 16A and operates at 230V. The PDU features 20 IEC 60320 C13 outlets and 4 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes a 10-foot power cord with an IEC 60309 16A plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP7552
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Basic Rack
Product Name: Basic Rack 3680VA PDU
Packaged Quantity: 1 Each
Product Type: PDU
Technical Information
PDU Type: Basic
Plug/Connector Type: IEC 60320 C20
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail:

• 20 x IEC 60320 C13
• 4 x IEC 60320 C19

Power Description
Input Voltage:

• 200 V
• 208 V
• 230 V

Output Voltage: 230 V AC
Power Rating (VA): 3.68 kVA
Physical Characteristics
Color Family: Black
Product Color: Black
Mounting Orientation: Vertical
Mounting Preference: No Preference
Mount Type: Rack-mountable
Placement: Side
Rack Height: 0U
Cord Length: 3.05 m
Height: 1619 mm
Width: 56 mm
Depth: 44 mm
Weight (Approximate): 4.86 kg
Miscellaneous
For Country/Region: United States
Optimized Energy Efficiency: Yes
Product Take Back Program: Yes
REACH free of SVHC: Yes
Lead Free: Yes
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759094&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759094&lang=en-us
Environmental Profile Availability: https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN
End of Life Manual Availability: https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
California Proposition 65 Warning: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WEEE Statement: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty
Parts Warranty/Labor: 2 Year
