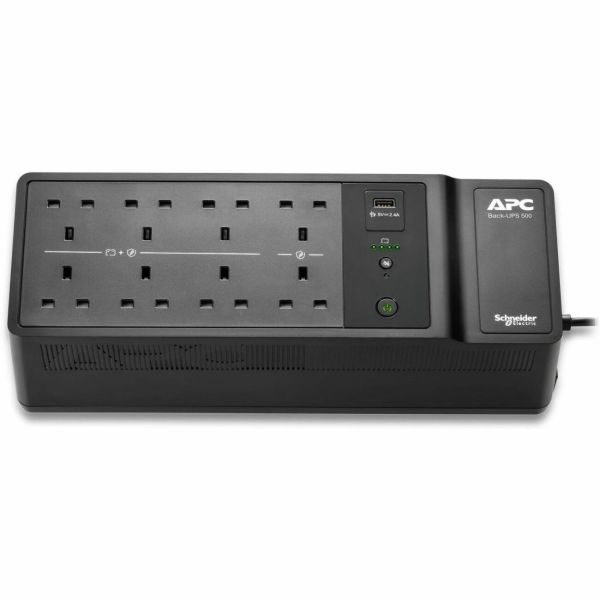

APC by Schneider Electric Back-UPS 500VA Floor/Wall Mountable UPS
£96.58
Out Of Stock - Contact us for availability
APC by Schneider Electric Back-UPS 500VA Floor/Wall Mountable UPS
Category: General Purpose UPS
| Battery Life | 5 Year |
|---|---|
| Waveform Type | Sine Wave |
| Backup/Run Time (Half Load) | 9.16 Minute |
| Backup/Run Time (Full Load) | 2.65 Minute |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Product Type | Standby UPS |
| Input Voltage | 230 V AC |
| Form Factor | Floor/Wall Mountable |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | British BS1363A |
| Input Voltage Range | 180 V AC - 266 V AC |
| Receptacle Type | USB Type A/BS 1363 |
| Product Family | Back-UPS |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| Product Color | Black |
| Receptacle Detail | 1 x USB Type A/8 x BS 1363 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)/Restriction of Hazardous Substances (RoHS)/China Restriction of Hazardous Substances (China RoHS) |
Description
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: BE500G2-UK
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Back-UPS
Product Name: Back-UPS 500VA Floor/Wall Mountable UPS
Packaged Quantity: 1 / Pack
Product Type: Standby UPS
Technical Information
Plug/Connector Type: British BS1363A
Receptacle Type:
Receptacle Detail:
Power Description
Load Ca...pacity (VA): 500 VA
Load Capacity (Watt): 300 W
Input Voltage: 230 V AC
Input Voltage Range: 180 V AC - 266 V AC
Input Current: 6 A
Output Voltage:
Input Frequency:
Output Frequency:
Waveform Type: Sine Wave
Surge Energy Rating: 310 J
Management
Alarm:
Controls/Indicators
Status Indicators:
Interfaces/Ports
USB: Yes
Number of USB Ports: 1
Battery Information
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Battery Energy: 165.6 kJ
Backup/Run Time (Full Load): 2.65 Minute
Backup/Run Time (Half Load): 9.16 Minute
Battery Life: 5 Year
Replaceable Battery: Yes
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Storage Temperature: -15°C - 45°C
Maximum Operating Elevation: 914.40 m
Maximum Storage Elevation: 4.57 km
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 45 dB(A)
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 120 mm
Width: 130 mm
Depth: 365 mm
Form Factor: Floor/Wall Mountable
Mounting Preference: No Preference
Weight (Approximate): 3.90 kg
Miscellaneous
Package Contents:
Certifications & Standards:
Environmental Compliance:
Warranty
Limited Warranty: 2 Year
Additional Warranty Information:
Directly Connected Equipment Guarantee: €100000
Manufacturer: Schneider Electric SA
Manufacturer Part Number: BE500G2-UK
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Back-UPS
Product Name: Back-UPS 500VA Floor/Wall Mountable UPS
Packaged Quantity: 1 / Pack
Product Type: Standby UPS
Technical Information
Plug/Connector Type: British BS1363A
Receptacle Type:
- USB Type A
- BS 1363
Receptacle Detail:
- 1 x USB Type A
- 8 x BS 1363
Power Description
Load Ca...pacity (VA): 500 VA
Load Capacity (Watt): 300 W
Input Voltage: 230 V AC
Input Voltage Range: 180 V AC - 266 V AC
Input Current: 6 A
Output Voltage:
- 220 V AC
- 230 V AC
Input Frequency:
- 47 Hz
- 63 Hz
Output Frequency:
- 47 Hz
- 50 Hz
- 60 Hz
- 63 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 310 J
Management
Alarm:
- Low Battery
- Overload
- Battery
Controls/Indicators
Status Indicators:
LED Status Display:
- On-Line
- Battery On
- Spare Battery
- Overload
Interfaces/Ports
USB: Yes
Number of USB Ports: 1
Battery Information
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Battery Energy: 165.6 kJ
Backup/Run Time (Full Load): 2.65 Minute
Backup/Run Time (Half Load): 9.16 Minute
Battery Life: 5 Year
Replaceable Battery: Yes
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Storage Temperature: -15°C - 45°C
Maximum Operating Elevation: 914.40 m
Maximum Storage Elevation: 4.57 km
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 45 dB(A)
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 120 mm
Width: 130 mm
Depth: 365 mm
Form Factor: Floor/Wall Mountable
Mounting Preference: No Preference
Weight (Approximate): 3.90 kg
Miscellaneous
Package Contents:
- Back-UPS 500VA Floor/Wall Mountable UPS
- User Manual
Certifications & Standards:
- CE
- EAC
- EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
Warranty
Limited Warranty: 2 Year
Additional Warranty Information:
2 years warranty for repair/replacement, 3 years repair or replacement for European Union countries
Directly Connected Equipment Guarantee: €100000
