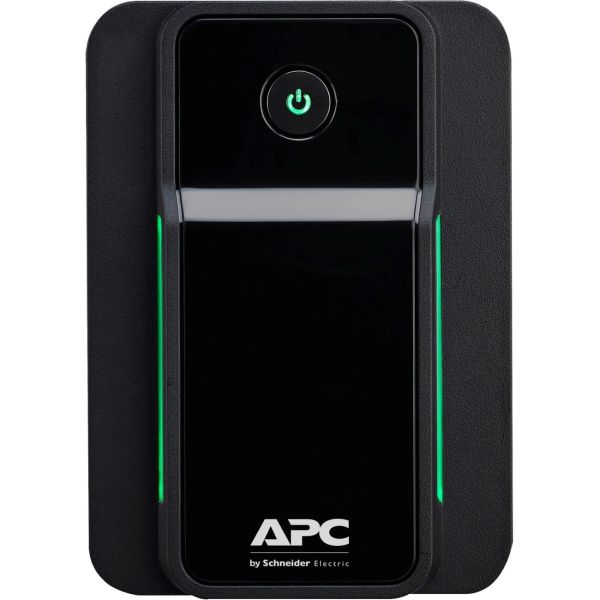

APC by Schneider Electric Back-UPS Line-interactive UPS - 500 VA/300 W

Marketing Information

500VA / 300W line-interactive UPS Controls LED brightness , Quick Mute and Generator Setting by pressing one single power button. Our New BX Series offers Dataline protection for data transmission through Network with 1 gigabit speed. Ideal for Home and Office Users USB communication cable ready to use

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: BX500MI
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Back-UPS
Product Series: BX
Product Name: Back-UPS BX 500VA Tower UPS
Product Type:... Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 3 x IEC 60320 C13
Dataline Protection: RJ-45
Transfer Time: 10 ms
Application/Usage:

• Home
• Office

Power Description
Load Capacity (VA): 500 VA
Load Capacity (Watt): 300 W
Input Voltage: 230 V
Input Voltage Range: 140 V AC - 300 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Stepped Approximated Sine Wave
Surge Energy Rating: 273 J
Management
Alarm:

• On Battery
• Low Battery

Controls/Indicators
Status Indicators:

LED Status Display:

• On line
• On battery

Interfaces/Ports
Serial Port: No
Network (RJ-45): Yes
USB (HID Compliant) Port: No
Battery Information
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 7000 mAh
Backup/Run Time (Full Load): 1 Minute
Backup/Run Time (Half Load): 7.15 Minute
Battery Life: 5 Year
Typical Battery Recharge Time: 8 Hour
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -15°C - 40°C
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 40 dB(A)
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 138 mm
Width: 98 mm
Depth: 310 mm
Weight (Approximate): 4.20 kg
