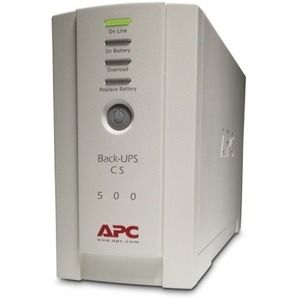

APC by Schneider Electric Back-UPS BK500EI Standby UPS - 500 VA/300 W

Marketing Information

APC Back-UPS CS 500VA provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your... important office and home office systems.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: BK500EI
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Back-UPS
Product Series: CS
Product Model: BK500EI
Product Name: Back-UPS CS 500VA
Product Type: Standby UPS
Technical Information
Plug/Connector Type: IEC 320-C14
Receptacle Type: IEC 60320 C13
Receptacle Detail:

• 1 x IEC 60320 C13
• 2 x IEC 60320 C13
• 3 x IEC 60320 C13
• 2
• 3

Dataline Protection: RJ-45
Power Description
Load Capacity (VA): 500 VA
Load Capacity (Watt): 300 W
Input Voltage: 220 V AC
Output Voltage: 230 V AC
Surge Energy Rating: 300 J
Management
Alarm:

• On Battery
• Low Battery
• Overload

Controls/Indicators
Status Indicators:

• On Line
• On Battery
• Replace Battery
• Overload

Interfaces/Ports
USB: Yes
Battery Information
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2.40 Minute
Backup/Run Time (Half Load): 13.90 Minute
Hot Swappable: Yes
Environmental Conditions
Maximum Operating Temperature: 45°C
Thermal Dissipation: 24 BTU/h
Physical Characteristics
Color Family: Beige
Product Color: Beige
Height: 165.1 mm
Width: 91.4 mm
Depth: 284.5 mm
Weight (Approximate): 6.30 kg
Miscellaneous
Package Contents:

• Back-UPS CS 500VA
• Software CD
• USB cable
• User Manual

Additional Information:

• Replacement battery cartridge Quantity: 1
• Units per Pallet: 96
• Automatic restart of loads after UPS shutdown
• Automatic self-test
• Power conditioning

Certifications & Standards:

• C-tick
• CE
• EN 50091-1
• EN 50091-2
• GOST
• PCBC
• VDE
• UL 1449

Warranty
Limited Warranty: 2 Year
