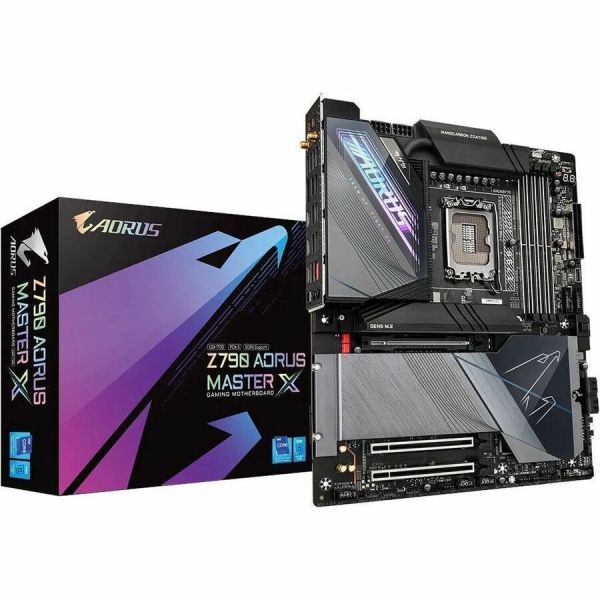

Aorus Z790 AORUS MASTER X Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX

Marketing Information

X Gen Designed for 14th Gen

X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel Core 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.

Memory Xceed in DDR5 performance

GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS MASTER X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.

Best-i...n-class Compatibility

DDR5 Overclocking Up to

8266 MT/s

Memory Xceed in DDR5 performance

GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS MASTER X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.

Best-in-class Compatibility

DDR5 Overclocking Up to

8266 MT/s

QVL List

BIOS Engineering

Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.

DDR5 XMP Booster

one click to auto boost your DDR5 module by the highest profile

DDR5 Auto Booster

one click to boost native DDR5-5600 to 6000

High Bandwidth

one click to increase DDR5 bandwidth

Low Latency

one click to shorten DDR5 latency

XMP 3.0 User Profile

optimizes memory settings and achieve the best performance for the system

Memory Xceed in DDR5 performance

GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS MASTER X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.

Best-in-class Compatibility

DDR5 Overclocking Up to

8266 MT/s

QVL List

*Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.

BIOS Engineering

Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.

DDR5 XMP Booster

one click to auto boost your DDR5 module by the highest profile

DDR5 Auto Booster

one click to boost native DDR5-5600 to 6000

High Bandwidth

one click to increase DDR5 bandwidth

Low Latency

one click to shorten DDR5 latency

XMP 3.0 User Profile

optimizes memory settings and achieve the best performance for the system

Learn more about BIOS optimizations

Hardware Craftsmanship

Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience.

Shielded Memory Routing

Isolated Memory Routing

8-layer Server-grade PCB

Back Drilling Technology

Robust VRM Design Xtraordinary power delivery

The Z790 AORUS MASTER X motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.

Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: Z790AORUSMASTERX
Manufacturer Website Address: http://uk.giga-byte.com
Brand Name: Aorus
Product Model: Z790 AORUS MASTER X
Product Name: Z790 AORUS MASTER X Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Z790
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported:

• 14th Gen
• 13th Gen
• 12th Gen

Processor Supported:

• Core
• Celeron
• Pentium Gold

Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 8266 MHz
• 8200 MHz
• 8000 MHz
• 7950 MHz
• 7900 MHz
• 7800 MHz
• 7600 MHz
• 7400 MHz
• 7200 MHz
• 7000 MHz
• 6800 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 4800 MHz
• 4000 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 5.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
2.5Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
Total Number of Expansion Slots: 3.0
PCI Express Standard:

• PCI Express 5.0
• PCI Express 3.0

Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 14
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 7
S/PDIF: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 5
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: Extended ATX
Width: 305 mm
Depth: 260 mm
Miscellaneous
Brand Compatibility: Intel
