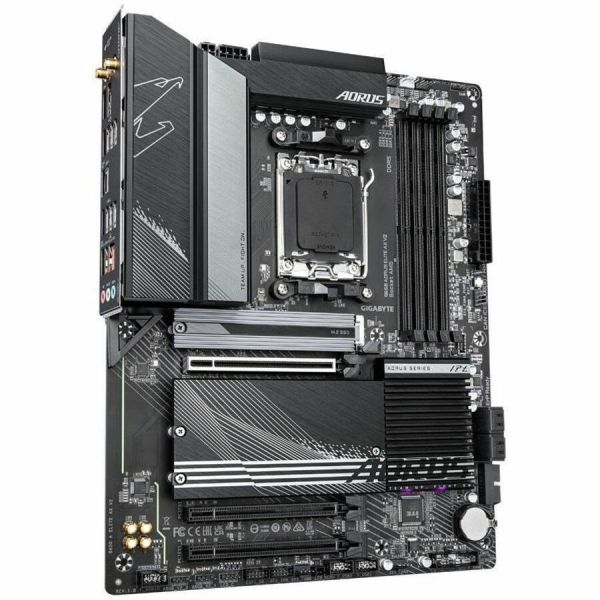

Aorus Ultra Durable B650 A ELITE AX V2 Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX

Marketing Information

Robust VRM Design Power in number

All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.

Digital Twin VRM Design

ensures stable high-power delivery for advanced overclocking.

12 VCORE Phases 60A Dr.MOS

to unleash the full potential of multi-core CPU performance.

2 SOC Phases 60A Dr.MOS

for CPU integrated GPU performance and memory control.

2 MISC Phases

provide stable power for CPU-connected PCIe lanes.

Memory, to the future

All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compa...tibility.

Best-in-class Compatibility

DDR5 Overclocking Up to

8000 MT/s

BIOS Engineering

Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.

DDR5 Auto Booster

one click to boost native DDR5-4800 to 5000

AMD EXPO/ Intel XMP 3.0 User Profile

optimizes memory settings and achieve the best performance for the system

High Bandwidth

one click to increase DDR5 bandwidth

Low Latency

one click to shorten DDR5 latency

Hardware Craftsmanship

Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience.

Shielded Memory Routing

Memory routing is shielded within the PCB's inner layer to protect against interference.

Daisy-Chained Routing

Optimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience.

Efficient Thermal Overall Thermal

Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

VRM Thermal Armor Advanced

These solid heatsinks are forged to keep your system cool.

Real One-piece Build

Multi-Cut Design

3X

Large Surface

M.2 Thermal Guard

prevents throttling and bottlenecks from high speed Gen5 M.2 SSDs

M.2 Thermal Guard Ext.

2 x M.2

slots coverage

Smart Fan 6

Cool. Quiet. Customized.

DIY-friendly Build effortless

Building your own PC is meant to be joyful and effortless. AORUS serious motherboard the most DIY-friendly ever.

EZ-Latch Designs

Effortless mechanisms that enable easy installations of components.

Quick Control Elements

Reset. Update. Convenient.

Multi-key

Q-FLASH PLUS

Ultra Durable Get everything

GIGABYTE Ultra Durable Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger.

Connectivity versatile

Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Seamless Connectivity

Wi-Fi 6E

Ultra-high Gain Antenna

2.5GbE LAN

Enjoy reliable gaming audio | High Quailty Sound

Enjoy a high-quality sound experience, which supports 7.1 channel playback, features an advanced microphone array, and offers versatile connectivity options for gaming and entertainment.

Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: B650 AORUS ELITE AX V2
Manufacturer Website Address: http://uk.giga-byte.com
Brand Name: Aorus
Product Line: Ultra Durable
Product Model: B650 A ELITE AX V2
Product Name: Ultra Durable B650 A ELITE AX V2 Gaming Dekhtop Motherboard
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B650
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7
Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 8000 MHz
• 7800 MHz
• 7600 MHz
• 7200 MHz
• 7000 MHz
• 6800 MHz
• 6666 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5600 MHz
• 5200 MHz
• 4800 MHz
• 4400 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 10

Video
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: AMD
Graphics Controller Model: Radeon Graphics
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 3.0
PCI Express Standard:

• PCI Express 4.0
• PCI Express 3.0

Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 12
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Ports: 5
Number of USB 3.2 Gen 2 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-C Ports: 1
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 305 mm
Depth: 244 mm
Miscellaneous
Brand Compatibility: AMD
