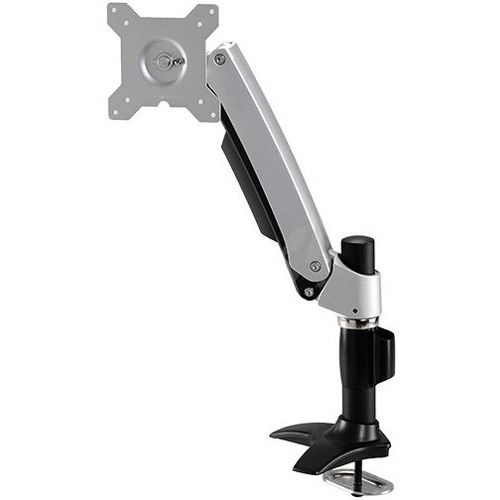

Amer Mounts Articulating Monitor Arm. Supports up to 22lbs. VESA compatible

Marketing Information

This incredibly versatile product supports up to 26" monitors with a maximum individual weight of 22.1 lbs. Not only will this strong and sturdy mount have no trouble holding VESA certified 75x75 or 100x100 monitors, (fitting the above criteria), it is also extremely adjustable!

• Each monitor can be placed at a different height to accommodate different sized monitors
• The monitor has 360º rotation, meaning landscape, portrait, or anything in-between
• Tilt and Swivel and Rotation is provided in 5 places ensuring maximum adjustability:
• • Swivel in the hinge: +/- 90º
  • Tilt in the hinge: +90º/-20º
  • Tilt in the arm: +65º/-30º
  • Rotation about the pole an...d main arm: 360º
• Height adjustable, with a maximum height of 16.46" (from the desk to the center of the mounting device)
• Extendable with a max horizontal extension of 16.54" from the rear edge

Benefits of Grommet Mounting:

This type of mount takes the best of both clamp, and stand style mounting, filling in the holes on your desk, and clamping onto the bottom for a secure mount.

• Takes up less desk space than the stand style mount
• Incorporates the sturdiness of the clamp mount without the overhang off the desk

Specifications
Manufacturer: Amer Networks, Inc
Manufacturer Part Number: AMR1AP
Manufacturer Website Address: http://www.amer.com
Brand Name: Amer Mounts
Product Name: Articulating Monitor Arm. Supports up to 22lbs. VESA compatible
Product Type: Grommet Mount
Product Information
Device Supported: Flat Panel Display
Maximum Load Capacity: 10.02 kg
Minimum Screen Size Supported: 38.1 cm
Maximum Screen Size Supported: 66 cm (26")
Maximum Adjustable Height: 41.8 cm
Features:

• Articulating
• Tilt
• Smart Torque Adjustment
• Rotate
• Cable Management
• Extendable

Height Adjustable: Yes
Physical Characteristics
Product Color: White
VESA Mount Compatible: Yes
Mounting Pattern:

• 75 x 75
• 100 x 100

Miscellaneous
Additional Information:

• Easy Install
• +90/- 20 degree tilt
• Arms Rotate 360 Degrees About the Central Pole

Compatibility: LCD/LED Monitors
