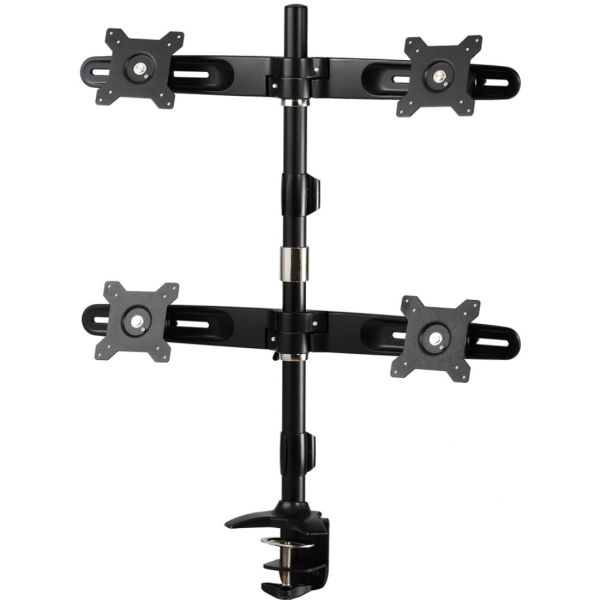

Amer Mounts Clamp Based Quad Monitor Mount. Up to 24" , 17.6lb monitors

Marketing Information

This incredibly versatile product supports up to four 24" monitors each with a maximum individual weight of 17.6 lbs. Not only will this strong and sturdy mount have no trouble holding VESA certified 75x75 or 100x100 monitors, (fitting the above criteria), it is also extremely adjustable!

• Each monitor can be placed at a different height to accommodate different sized monitors
• All four monitors have 360º rotation (meaning landscape, portrait, or anything in-between)
• Also included is a +/- 20º tilt in any direction Individually for ALL 4 Monitors, ensuring maximum user comfort
• Height adjustable, with a maximum height of approximately 27" from the desk to th...e center of the highest mounting device

Benefits of Clamp Mounting:

Clamp Bases are an excellent mounting option! They are screwed onto the edge of a desk for maximum space. (Clamp bases require a lip on the desk 8-50 mm thick and 85 mm deep)

• They are the sturdiest mount of the three kinds (stand, clamp and grommet)
• They take up the least amount of desk space (So much more room for activities!)

Specifications
Manufacturer: Amer Networks, Inc
Manufacturer Part Number: AMR4C
Manufacturer Website Address: http://www.amer.com
Brand Name: Amer Mounts
Product Name: Clamp Based Quad Monitor Mount. Up to 24" , 17.6lb monitors
Product Type: Desk Mount
Product Information
Device Supported: Flat Panel Display
Maximum Load Capacity: 31.93 kg
Maximum Screen Size Supported: 61 cm (24")
Maximum Adjustable Height: 68.6 cm
Features:

• Smart Torque Adjustment
• Tilt
• Rotate
• Cable Management

Height Adjustable: Yes
Physical Characteristics
Product Color: Black
VESA Mount Compatible: Yes
Mounting Pattern:

• 100 x 100
• 75 x 75

Product Material:

• Steel
• Aluminium Alloy
• Plastic

Height: 75.3 cm
Width: 71.5 cm
Depth: 14.4 cm
Weight (Approximate): 6.41 kg
Miscellaneous
Additional Information:

• Tilt: Max. + / -20° (For each "Hinge")
• Swivel: Max. +/-20° (For each "Hinge")
• Rotate(Pivot): 360° (For each "Hinge")
• Screw Type: M4
• Easy Install

Compatibility: 4 x LCD/LED Monitor
