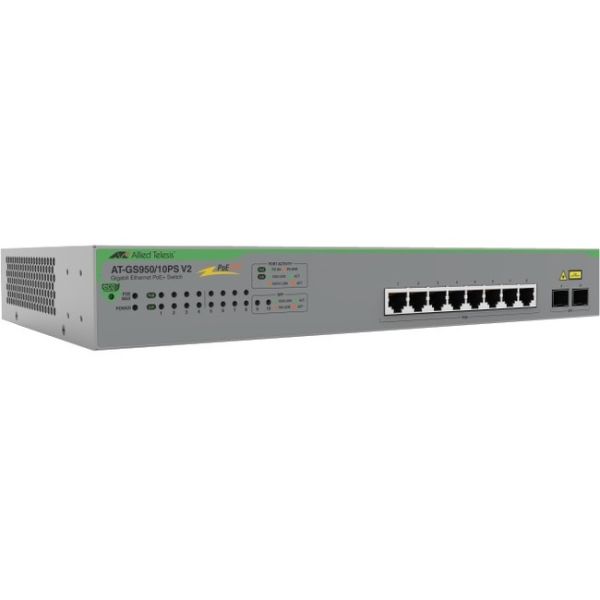

Allied Telesis GS950/10PS V2 Ethernet Switch

Marketing Information

Gigabit WebSmart Edge Switches

The Allied Telesis GS950 V2 Series of WebSmart network switches demonstrates the Allied Telesis commitment to environmentally-friendly processes and products, minimizing power consumption through the use of a high efficiency power supply and a low power chipset. Featuring PoE+, GS950 V2 Series switches at the network edge are the ideal cost-effective solution for small businesses.

Ease of management and high performance
These advanced Allied Telesis WebSmart switches combine the simplicity of unmanaged switches with the performance and reliability of managed switches. This provides a cost-effective, secure and reliable solution for integrated management at the network edge. W...ith user-friendly web-based management, the GS950 V2 Series is ideal for integrating simple management and security into your network solution.

Power over Ethernet (PoE)
The GS950/10PS V2, 18PS V2, 28PS V2 and 52PS V2 switches are available in PoE+ (IEEE 802.3at), with the capability of delivering up to 30W per port.

PoE allows users to connect and power a device using a single Ethernet cable, thus eliminating the need for additional power outlets and simplifying installation. Furthermore, this system is unaffected by any local variance in AC power, offering a standardized power infrastructure.

Specifications
Manufacturer: Allied Telesis, Inc
Manufacturer Part Number: AT-GS950/10PS V2-50
Manufacturer Website Address: http://www.alliedtelesis.co.uk
Brand Name: Allied Telesis
Product Series: GS950 V2
Product Model: GS950/10PS V2
Product Name: GS950/10PS V2 Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet PoE+
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 100/1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3at
• IEEE 802.3af
• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.3ad
• IEEE 802.1x
• IEEE 802.3x
• IEEE 802.3
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.3ab
• IEEE 802.3az

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 75 W
Power Source: Power Supply
Power Consumption: 25 W
Physical Characteristics
Form Factor:

• Wall Mountable
• Rack-mountable
• Desktop

Height: 44 mm
Width: 330 mm
Depth: 180 mm
Weight (Approximate): 1.90 kg
Miscellaneous
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)
