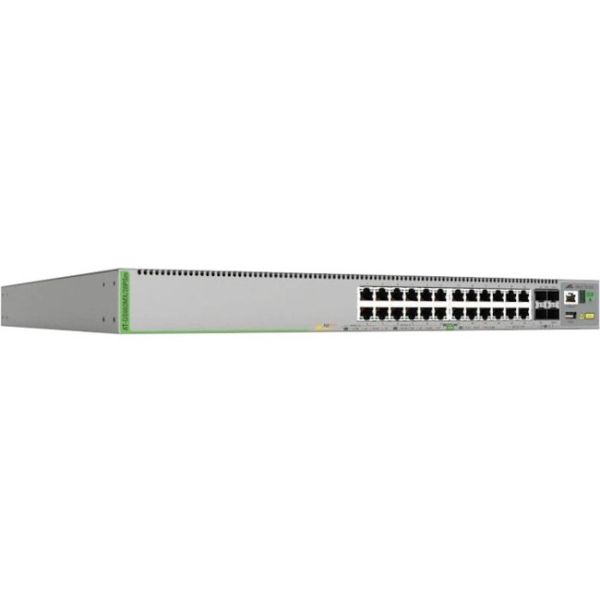

Allied Telesis CentreCom GS980MX/28PSM Layer 3 Switch

Marketing Information

Stackable Multi-Gigabit Layer 3 Lite Switches

The Allied Telesis Centre COM GS980MX Series of Layer 3 Gigabit switches feature high-capacity, resiliency and easy management. Power over Ethernet models with Multi-Gigabit support make them an ideal solution for high-speed connectivity at the network edge.

Overview
Allied Telesis GS980MX Series are high-performing, feature-rich, and versatile for today's networks. With Gigabit/Multi-Gigabit ports and 10 Gigabit uplinks, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack™), the GS980MX Series enable flexible deployment and a resilient solution.

The Power over Ethernet models offer 2.5G and 5G Multi-Gigabit ports to support connecti...ng and powering high-speed Wi-Fi 6 wireless networks, and other high bandwidth applications. The GS980MX/10HSm can provide up to 90 Watts (PoE++) per port. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting, and more.

Specifications | Performance

• 10KB L2 and 9KB L3 jumbo frames
• 4094 configurable VLANs
• Up to 16K MAC addresses
• 1GB DDR3 SDRAM
• 256MB NAND flash memory
• Packet Buffer memory: 1.5MB

Expandability

• Stack up to 4 units in a VCStack

Diagnostic tools

• Active Fiber Monitoring detects tampering on optical links
• Built-In Self test (BIST)
• Cable fault locator (TDR)
• Find-me device locator
• Automatic link flap detection and port shutdown
• Optical Digital Diagnostic Monitoring (DDM)
• Ping polling for IPv4 and IPv6
• Port mirroring
• Trace Route for IPv4 and IPv6
• Uni-Directional Link Detection (UDLD)

IP Features

• Equal Cost Multi Path (ECMP) routing
• Static routing and RIP for IPv4
• Static routing for IPv6
• Device management over IPv6 networks with SNMPv6, Telnetv6, SSHv6
• IPv6 hardware ACLs
• Log to IPv6 hosts with Syslog v6
• IPv6 Ready certified

Management

• Front panel 7-segment LED provides at-a-glance status and fault information
• Allied Telesis Autonomous Management Framework (AMF) enables powerful centralized management and zero-touch device installation and recovery
• Manage the GS980MX Series with Vista Manager EX-our graphical single-pane-of-glass monitoring and management tool for AMF networks, which also supports wireless and third party devices
• AMF Security (AMF-Sec) enables a self-defending network-managing the GS980MX Series (or other AMF switches) to automatically block the spread of malware by quarantining suspect end user devices
• Console management port on the front panel for ease of access

Specifications
Manufacturer: Allied Telesis, Inc
Manufacturer Part Number: AT-GS980MX/28PSM-50
Manufacturer Website Address: http://www.alliedtelesis.co.uk
Brand Name: Allied Telesis
Product Line: CentreCOM
Product Series: GS980MX
Product Model: GS980MX/28PSM
Product Name: CentreCom GS980MX/28PSM Layer 3 Switch
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 20 x Gigabit Ethernet PoE+
• 4 x 5 Gigabit Ethernet PoE+
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• 5 Gigabit Ethernet
• 10 Gigabit Ethernet
• Gigabit Ethernet

Network Technology:

• 5GBase-T
• 10GBase-X
• 10/100/1000Base-T

I/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.2
• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3ae
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3az
• IEEE 802.3bt
• IEEE 802.3bz
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.1x
• IEEE 802.1ab
• IEEE 802.1p
• IEEE 802.1AX
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.3ad
• IEEE 802.1Q
• IEEE 802.1v

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 370 W
Power Source: Power Supply
Number of Power Supplies Supported: 1
Power Consumption: 70 W
Physical Characteristics
Form Factor:

• Rack-mountable
• Wall Mountable

Height: 44 mm
Width: 441 mm
Depth: 421 mm
Weight (Approximate): 5.60 kg
Miscellaneous
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)
