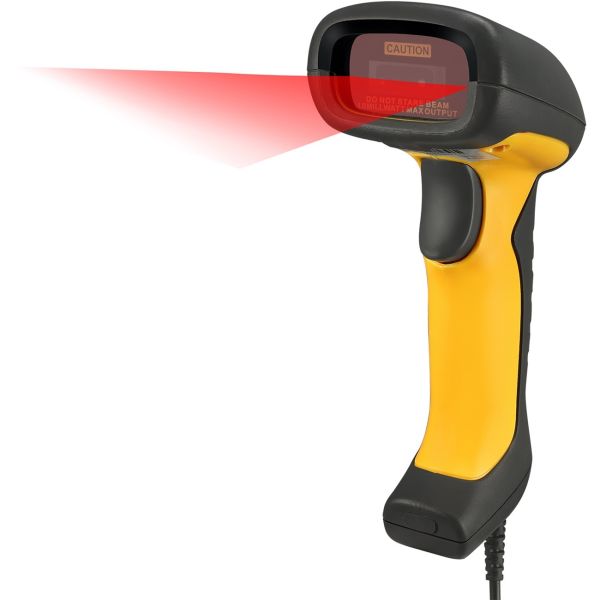

Adesso NuScan 5200TU- Antimicrobial & Waterproof 2D Barcode Scanner

Marketing Information

The Adesso NuScan 5200TU is compatible with a wide range of 1D and 2D barcode symbologies. With CMOS imager the NuScan 5200TU is able to scan major 2D barcodes such as PDF 417, QR Codes, Data Matrix, and micro QR Code. As your daily peripheral companion, your peripheral must be able to provide you with good hygiene and cleanness. Built with waterproof and antimicrobial substances, the NuScan 5200TU can be cleaned periodically. Its 7 meter drop protection also adds to its ruggedness. With all these great features, the NuScan 5200TU is truly your ultimate barcode scanner.

Features:

Antimicrobial
The Nuscan 5200TU is made with antimicrobial material which prevents the growth of harmful bacteria and protects ag...ainst the buildup germs.

Waterproof
IP67 Rated. Sealed with a silicone plastic material, this scanner is 100% waterproof and can be cleaned with soap and water or other liquids cleaners. Ranked as a IP67 Waterproof Standard, this device can withstand being submerged in water for up to 30 min up to a depth of 3 feet.

Drop Protection
With its rugged design and durable silicone plastic material, the Nuscan 5200TU is less likely to become damaged due to accidental drops from up to 20 feet.

2D & 1D Scanning Engine
Easily and instantly read 2-dimensional barcode symbologies such as the most common PDF 417, QR, Data Matrix, and micro QR Code. 1D barcode symbologies are supported as well, making the Nuscan 5200TU truly reliable

Superior Scanning Performance
The 24 inches per second (IPS) motion tolerance and the innovative high pixels CMOS engine offer fast and accurate scanning results.

More from the Manufacturer

Specifications
Manufacturer: Adesso, Inc
Manufacturer Part Number: NUSCAN 5200TU
Manufacturer Website Address: http://www.adesso.com
Brand Name: Adesso
Product Line: NuScan
Product Model: 5200TU
Product Name: NuScan 5200TU- Antimicrobial & Waterproof 2D Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• UPC-A/E
• EAN13/8
• Code 128
• GS1-128
• Code 39 (Plain&Full ASCII)
• Code 93
• Code 11
• Code 25 (ITF/Industrial/Matrix/IATA Standard)
• Codabar
• MSI/MSI Plessey
• GS1 DataBar

2D:

• PDF 417
• Data Matrix
• QR
• Micro QR

Image Sensor Type: CMOS
Scanner Range: Long Range
Scanning Distance: 304.80 mm
Reading Angle (Pitch): 45°
Reading Angle (Roll): 50°
Motion Tolerance: 609.60 mm/s
Drop Specification:

Withstanding 7m freefall drops

Minimum Print Contrast: 30%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Color Family: Dual Colour
Product Color:

• Yellow
• Black

Height: 101.6 mm
Width: 76.2 mm
Length: 177.8 mm
Weight (Approximate): 158.8 g
Miscellaneous
Ingress Protection (IP) Rating: IP67
Application/Usage:

• Industrial
• Healthcare
• Logistics
• Library
• Retail
