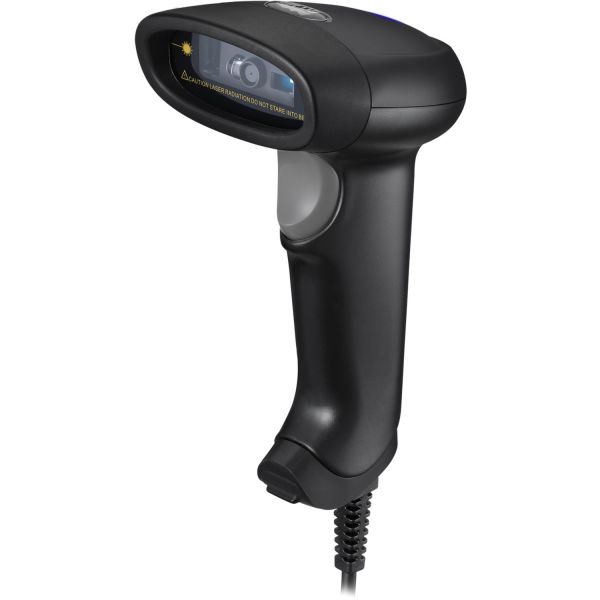

Adesso NuScan 2600U - Handheld 2D Barcode Scanner

Marketing Information

The Adesso NuScan 2600U is compatible with a wide range of 1D and 2D barcode symbologies. With CMOS imager the NuScan 2600U is able to scan major 2D barcodes such as
PDF 417, QR Codes, Data Matrix, and micro QR Code. As your daily peripheral companion, your peripheral must be able to provide you with good hygiene and cleanness. The
NuScan 2600U can be cleaned periodically. With all these great features, the NuScan 2600U is truly your ultimate barcode scanner.

2D Scanning Engine
The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes.

Reliable Data Collection

It's built-in decoder can read the majority... of 1D & 2D barcodes and it's driver-less operation makes it easy to use with both Windows® and Mac® operating systems.

Superior Scanning Performance

Equipped with its CMOS sensor the device has a motion tolerance of 5 inches per second, offering fast and accurate scanning results.

Drop Protection

With its drop protection design, the NuScan 2600U less likely to become damaged due to accidental drops.

Long Scanning Range

The 2D CMOS decoding engine is able to scan barcodes up to 12 inches scan depth.

Specifications
Manufacturer: Adesso, Inc
Manufacturer Part Number: NUSCAN 2600U
Manufacturer Website Address: http://www.adesso.com
Brand Name: Adesso
Product Line: NuScan
Product Model: 2600U
Product Name: NuScan 2600U - Handheld 2D Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• EAN-8
• EAN-13
• EAN-13 2 add-on
• EAN-13 5add-on
• ISSN
• ISBN
• UPC-A
• UPC-E
• Code 11
• Code 32
• Code 39
• Code 93
• Code 128
• Codabar
• Industrial 2 of 5
• Interleaved 2 of 5
• Matrix 2 of 5

2D:

• PDF417
• MicroPDF417
• MicroQR
• Data Matrix
• QR
• Aztec

Light Source: LED
Scan Rate: 30 scan/s
Scanner Range: Long Range
Scanning Distance: 304.80 mm
Maximum Ambient Light: 70000 lux
Drop Specification: The drop-protection design prevents damage due to accidental drops of less than 1.5 meters.
Minimum Print Contrast: 35%
Interfaces/Ports
Host Interface: USB
Power Description
Input Voltage: 5 V DC
Physical Characteristics
Form Factor: Handheld
Height: 105.4 mm
Width: 73.5 mm
Length: 167 mm
Weight (Approximate): 195 g
Miscellaneous
Package Contents:

NuScan 2600U - Handheld 2D Barcode Scanner

Quick Start Guide

Application/Usage:

• Logistics
• Library
• Healthcare
• Retail
• Warehouse

Platform Supported:

• PC
• Mac
• Android

Certifications & Standards:

IP42

Country of Origin: Taiwan
Warranty
Limited Warranty: 1 Year
